Express-CFR-i3-9100HL

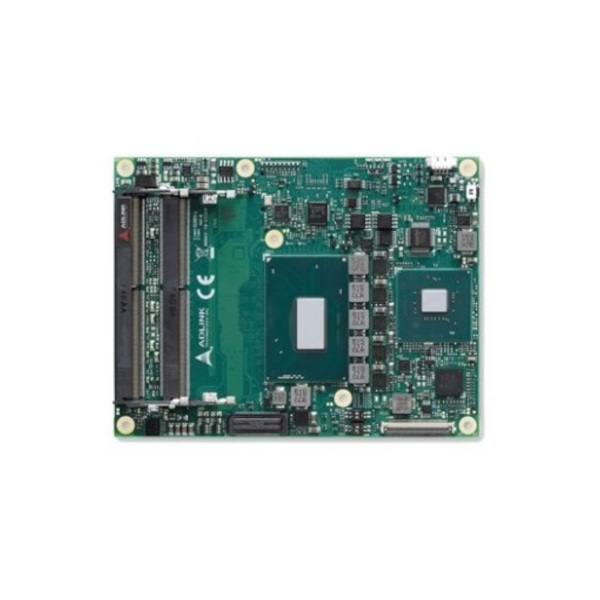

Express-CFR-i3-9100HL

ADLink
SKU: 10731600
COM Express Type 6 Module with Intel Core i3-9100HL CPU, Intel QM370, DDR4, 3xDDI, LVDS, GbE LAN, 4xUSB 3.1, 4xUSB 2.0, 4xSATA 6GB/s, GPIO, Audio, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express Basic
CPU
СPU Generation/Family
Coffee Lake
Processor Installed
Intel Core i3-9100HL
Max CPU frequency
2.9 GHz
Chipset
Chipset
HM370
Memory
Form-factor
DDR4
Socket Type
3xSODIMM
Maximum Memory
96 GB
Graphic
Interfaces
DisplayPort, LVDS, HDMI, VGA, eDP
Ethernet
Controller Type
Intel i219-LM
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
