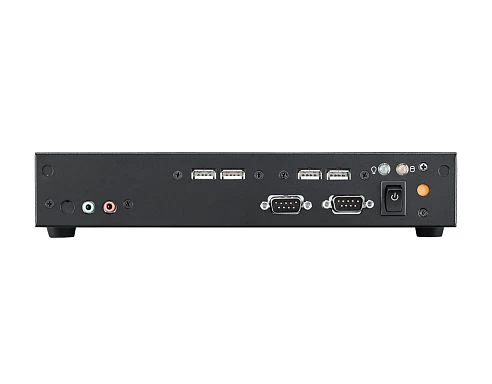

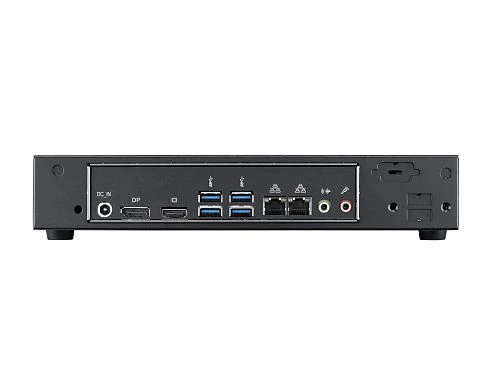

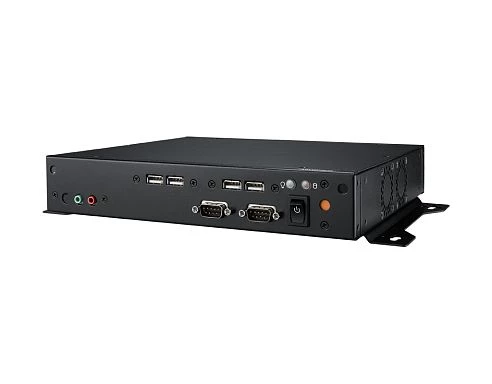

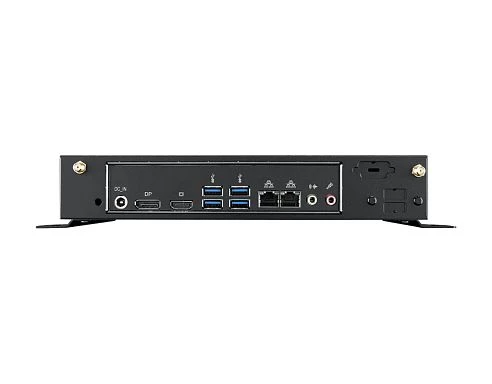

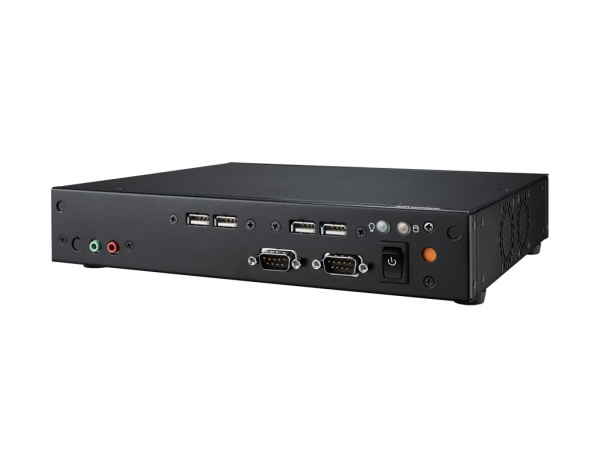

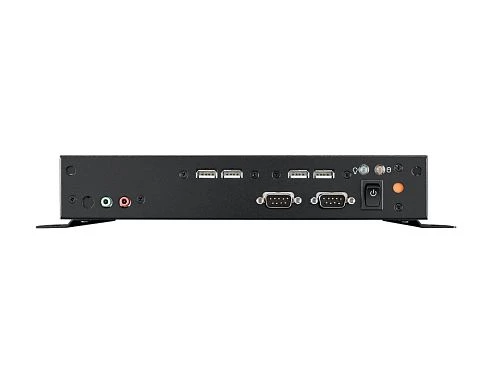

Embedded computer, Intel Core i5-6500TE 2.3GHz, DDR4, DP, HDMI, 2xGbE LAN, 2xCOM, 4xUSB 3.0, 4xUSB 2.0, w/o OS, w/o Power adapter, 12VDC-in
EPC-T22855A-00Y0E
Advantech
SKU: 09257500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall, 19" Rackmount
Type
Fans
CPU
Processor Installed
Intel Core i5-6500TE
Max CPU frequency
3.3 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
PCI Express x4
1
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
250 mm
Height
44.2 mm
Depth
225 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
1 Grms (HDD x 1); 3 Grms (SSD x 1)
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.1 kg
Gross Weight
3.23 kg
