EmETXe-i92U1-WT-1115G4E

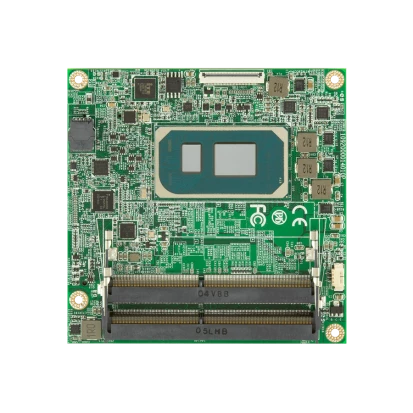

EmETXe-i92U1-WT-1115G4E

Arbor
SKU: 57968200
ETX CPU Module, Intel 11th Gen Core i3-1115G4E CPU, 2xDDR4 SO-DIMM Socket, Analog RGB/Dual 24-bit LVDS/3xDDI, 1xLAN, 2xUART, 8xUSB 2.0, 4xUSB 3.2, GPIO, 2xSATA, 8xPCIe x1 Lanes, 1xPCIe x4 Lane, Audio, TPM 2.0, -40..85C
Price on request
Available
Available

System Architecture
Form Factor
COM Express Compact
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i3-1115G4E
Socket
FCBGA 1449
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA, 2xLVDS 24 bit, 3xDDI
Ethernet
Controller Type
Intel i219-LM
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
Extension Slots
PCI Express x4
1
PCI Express x1
8
COM Express
2
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Ubuntu, Windows 10
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
