EmETXe-i2309-E3845-DIO

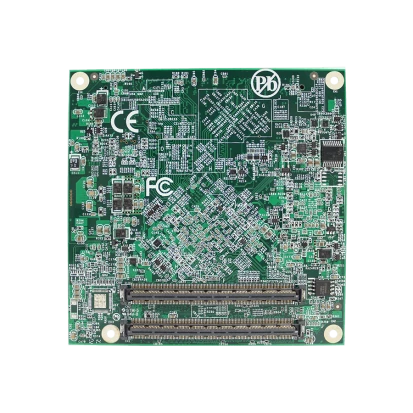

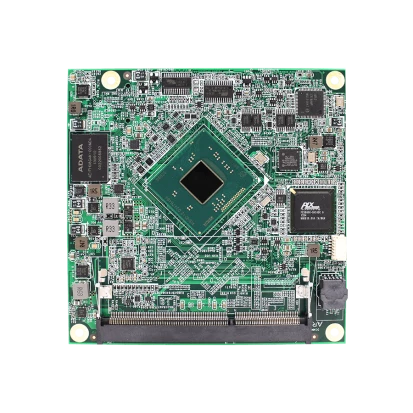

EmETXe-i2309-E3845-DIO

Arbor
SKU: 57962400
ETX CPU Module, Intel Atom E3845 1.91GHz CPU, Up to 8GB DDR3L RAM, Up to 16GB eMMC Optional, Analog RGB/Dual 24-bit LVDS/DP, 1xLAN, 1xUART, 8xUSB 2.0, 1xUSB 3.0, 8-bit GPIO, 2xSATA, 8xPCIe x1 Lanes, Audio, TPM Opt., -20..70C
Price on request
Available
Available

System Architecture
Form Factor
COM Express Compact
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Socket
FCBGA1170
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xLVDS 24 bit
Ethernet
Controller Type
Intel i210
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
9
USB 2.0
8
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 2
2
Extension Slots
PCI Express x1
8
COM Express
2
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
