EC900-FS6DL

EC900-FS6DL

DFI
SKU: 56550600

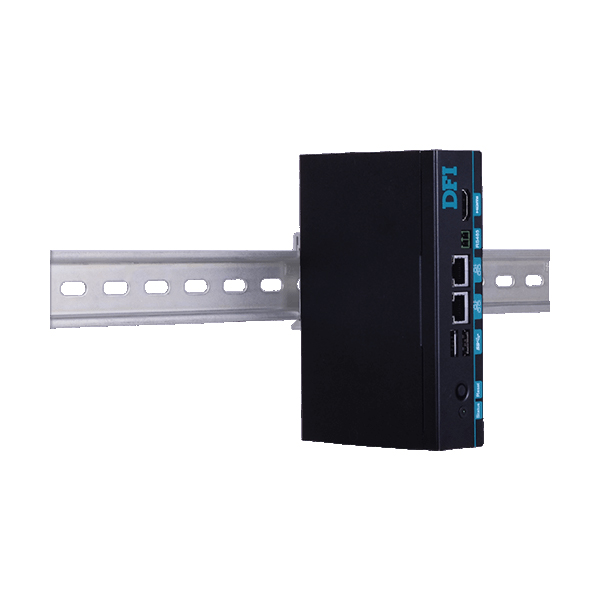

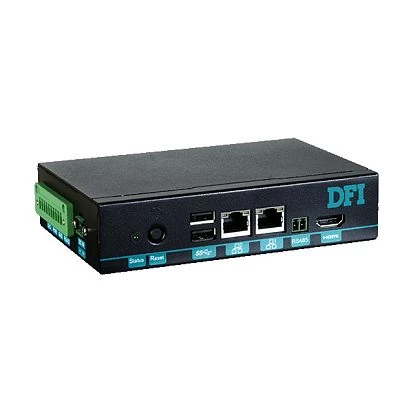

DIN Rail Fanless Embedded System, NXP IMX6DL Cortex-A9, 1GB DDR3L, 8GB eMMC, 4Mb NOR Flash, micro SD, HDMI, 2xLAN, 1xRS422/4bit DIO, 1xRS485, 2xUSB, 9-36V DC-In, -20 to 60C, RoHS, Yocto Linux
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
1 GB
Maximum Memory
4 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
3
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
MicroSD
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Android
Dimensions and weight
Width
145 mm
Height
34 mm
Depth
96.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
1 GB
Maximum Memory
4 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
3
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
MicroSD
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Android
Dimensions and weight
Width
145 mm
Height
34 mm
Depth
96.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
1 GB
Maximum Memory
4 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
3
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
MicroSD
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Android
Dimensions and weight
Width
145 mm
Height
34 mm
Depth
96.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
1 GB
Maximum Memory
4 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
3
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
MicroSD
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Android
Dimensions and weight
Width
145 mm
Height
34 mm
Depth
96.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg

Documentation
EC900-FS6-Datasheet
Documentation
EC900-FS6-Datasheet
Documentation
EC900-FS6-Datasheet
Documentation
EC900-FS6-Datasheet

Get a Quote

DFI
SKU: 56550600
EC900-FS6DL
EC900-FS6DL
EC900-FS6DL
EC900-FS6DL
