EC800-AL552CHV-E3950-4

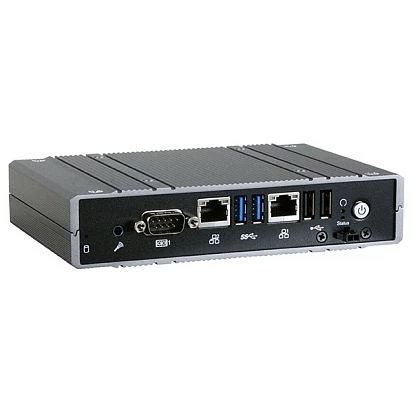

EC800-AL552CHV-E3950-4

DFI
SKU: 56492000
Modular-Designed Embedded System, Intel Atom E3950 CPU, 4GB LPDDR4 onboard, 2xMini-DP, VGA, 2xLAN, 2xCOM, 4xUSB, M.2 slot, Mini PCIe, 9-36V DC-In
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 50
CPU
CPU Support Type
Atom, Pentium
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, 2xMini DisplayPort
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Ubuntu, Windows 10 IoT Enterprise

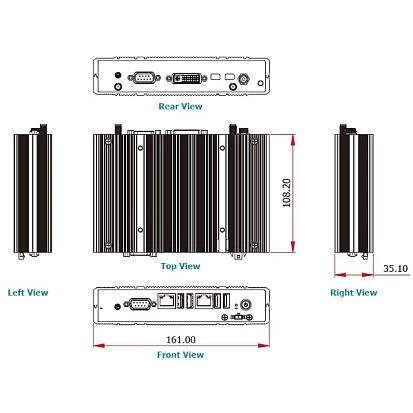

Dimensions and weight
Width
161 mm
Height
35.1 mm
Depth
108.2 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
5 kg
Gross Weight
1 kg
