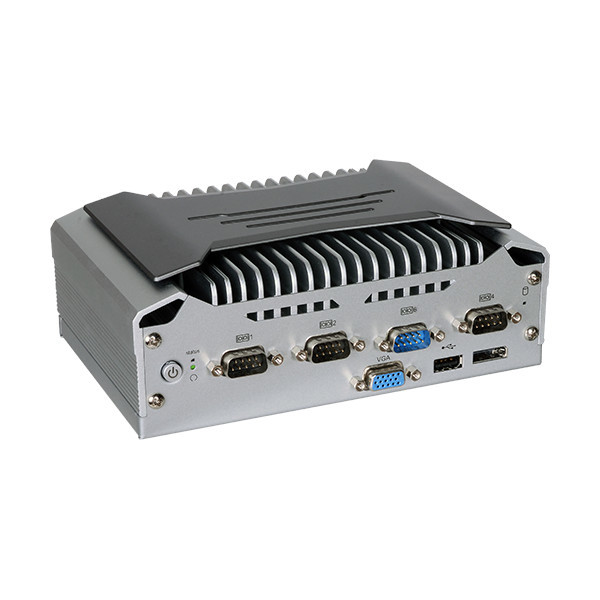

EC70A-KU6081-738
DFI
SKU: 57139200
Embedded Server, Intel Core i5-7300U CPU, 8 GB DDR4 RAM, 2xHDMI, 1xVGA, 2xLAN, 6xCOM, 4xUSB 3.0, 4xUSB 2.0, Audio, 15..36V DC, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall, Wall VESA 100, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Ethernet
Controller Type
Intel i210-AT, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
6xDB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, 4xUSB (4-pin)
System Power Input
Input Voltage DC
15 V
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
181.6 mm
Height
67 mm
Depth
118.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
IEC68-2-64w/mSATA & SSD Condition:- Random: 3Grms @ 5~500 Hz, IEC60068-2-64
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
2 kg
Gross Weight
3 kg
