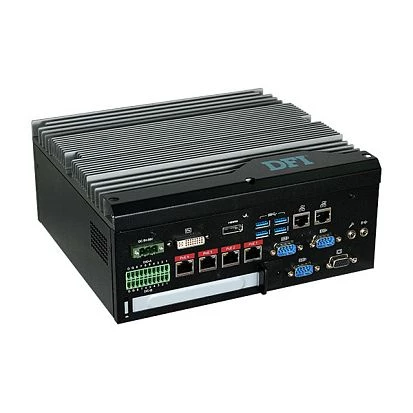

EC511-KH PoE
DFI
SKU: 57139500
Modular-Designed Embedded System, Intel Core i7-7820EQ, 6xCOM, 6xUSB, 2xLAN, 4xPoE, 16bit DIO, 1xPCIe x16, 9..36V DC, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-7820EQ
Socket
CPU onboard
Max CPU frequency
3.7 GHz
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i211, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232/422/485
5
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
16
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, Micro-SIM
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
5xDB9, DVI-D, DB15 VGA, 2xHDMI, 6xRJ45 Ethernet, 4xUSB, Display Port, 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
235 mm
Height
102.5 mm
Depth
221.2 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
IEC68-2-64
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
