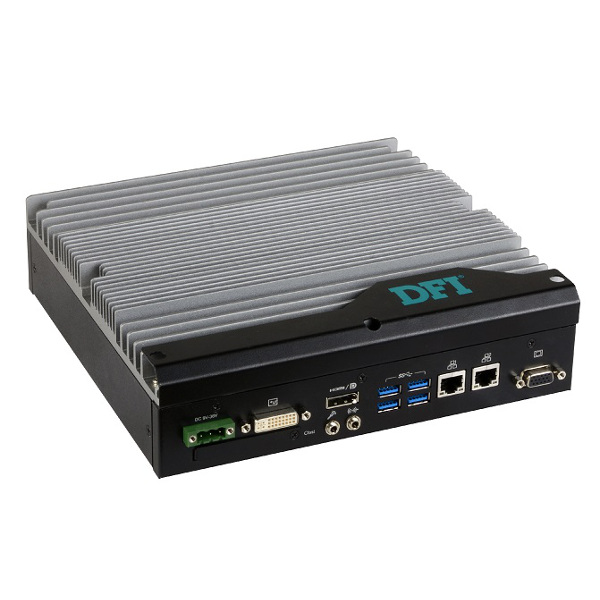

EC500-SD4061

EC500-SD4061

DFI
SKU: 56359400
Modular-Designed Embedded System, 6th Generation Intel Core Processors i3/i5/i7, LGA 1151 Socket, up to 32GB 1866/2133MHz SODIMM DDR4,cFast, VGA, DVI, HDMI, 2xLAN, 4xCOM, 6xUSB, 9-36V DC-In
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
CPU
Processor Installed
Intel Core i5-6500TE, Intel Core i3-6100TE, Intel Core i7-6700TE
Socket
LGA1151
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
CFast Slots
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI, DVI-D, DB15 VGA, Mic In, Line Out, HDMI/DP
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
63 mm
Height
265 mm
Depth
221 mm
Operating Conditions
Operating Temperature
0..45 °C
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
