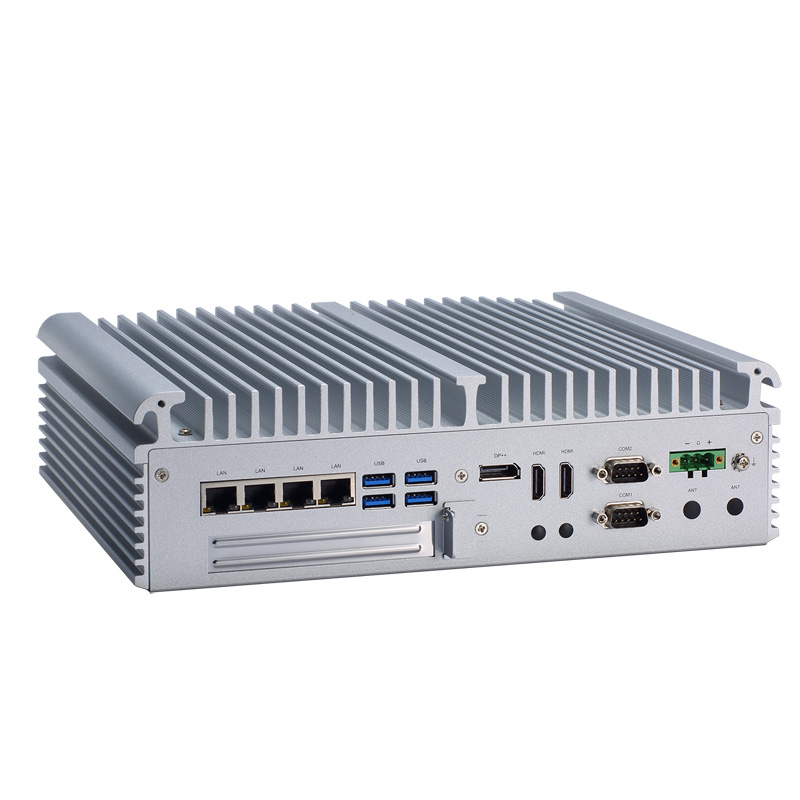

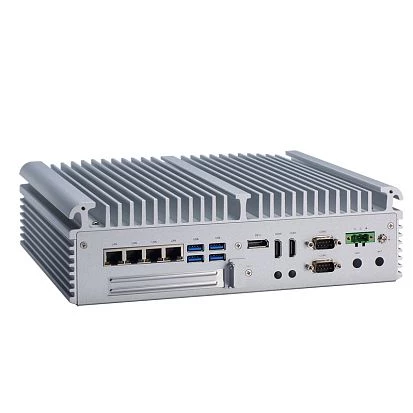

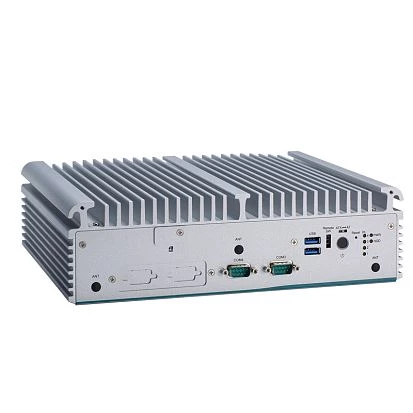

eBOX710A-CML-PCIe

eBOX710A-CML-PCIe

AXIOMTEK
SKU: 09880300
Fanless embedded system with LGA1200 socket for 10th/11th gen Intel Core i9/i7/i5/i3/Celeron, Intel H420E, DDR4, 2xHDMI, DP, 4xGbE LAN, 4xCOM, 5xUSB 3.2, 1xUSB 2.0, 2x2.5" SATA, 2x mSATA, 2xPCIe Mini, M.2 Key B 3050, 2xSIM, 1xPCIe x4, 9...48VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, 2xHDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
6
USB v3.x
6
Drive interfaces
SATA 3
2
mSATA
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
4
M.2
1
M.2 Form Factor
3050 B
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, AT/ATX Switch
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 6xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
280 mm
Height
80.5 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE/FCC, EAC
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.9 kg
Gross Weight
6.33 kg
