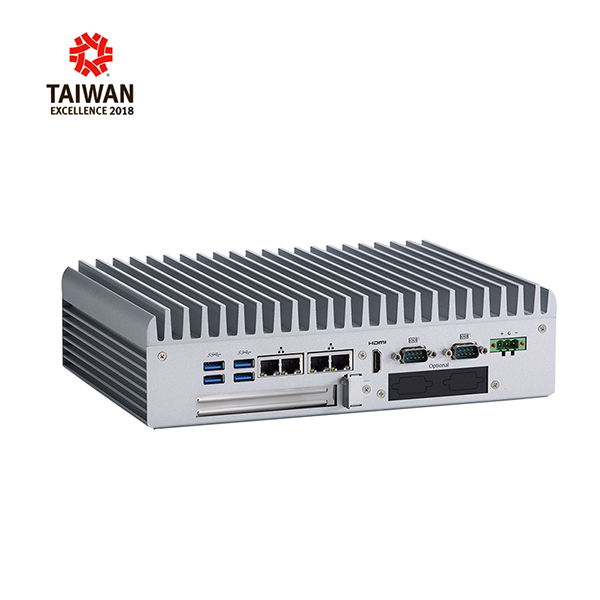

eBOX700-891-FL-PCIe-DC

eBOX700-891-FL-PCIe-DC

AXIOMTEK
SKU: 07669500
Fanless embedded system chipset H110 , 6/7 gen Intel Core i7/i5/i3,Intel Celeron, 2xDDR4-2133 up to 32GB, 1x2.5" SSD/HDD, 2xCOM, 2xHDMI, 1xDisplayPort, 1xAudio, 4xGbE LAN, 6xUSB, 1xPCIex4, 2xPCI Mini Card, 1x, 1xmSATA
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 4xRJ45 Ethernet, 6xUSB, 4xSMA, 1xDP, 2xRJ45 (COM), Audio Mic
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
76 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..50 °C
Vibration
3 Grms with SSD 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4 kg
Gross Weight
4.75 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 4xRJ45 Ethernet, 6xUSB, 4xSMA, 1xDP, 2xRJ45 (COM), Audio Mic
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
76 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..50 °C
Vibration
3 Grms with SSD 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4 kg
Gross Weight
4.75 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 4xRJ45 Ethernet, 6xUSB, 4xSMA, 1xDP, 2xRJ45 (COM), Audio Mic
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
76 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..50 °C
Vibration
3 Grms with SSD 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4 kg
Gross Weight
4.75 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 4xRJ45 Ethernet, 6xUSB, 4xSMA, 1xDP, 2xRJ45 (COM), Audio Mic
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
76 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..50 °C
Vibration
3 Grms with SSD 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4 kg
Gross Weight
4.75 kg
