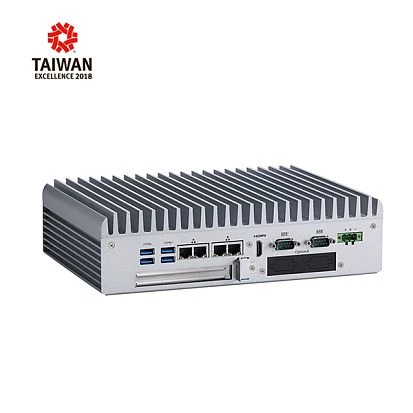

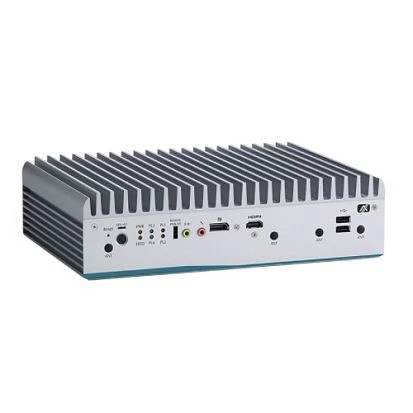

eBOX700-891-FL-PCI-DC

eBOX700-891-FL-PCI-DC

AXIOMTEK
SKU: 66547300
Fanless embedded system w. LGA1151 socket 6th/7th gen intel Core i7/i5/i3 & Celeron CPU, Chipset Intel H110, 2 HDMI/1 DisplayPort, 4 GbE LANs, 6 USB, PCI, 2xPCI Mini Card, 9...36 V DC, Op.Temp.-40C...+50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 4xRJ45 Ethernet, 6xUSB, 4xSMA, 1xDP, 2xRJ45 (COM), Audio Mic
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
76 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..50 °C
Vibration
3 Grms с SSD 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.8 kg
Gross Weight
4.6 kg
