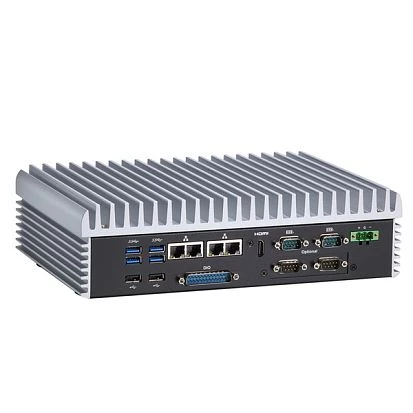

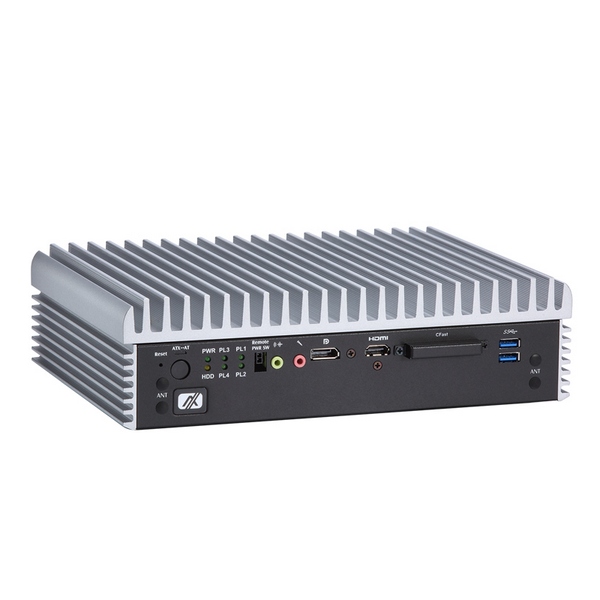

eBOX670-891-FL-DC

eBOX670-891-FL-DC

AXIOMTEK
SKU: 08783700
Fanless embedded system with LGA1151 socket 6th generation Intel Core i7/i5/i3/Celeron processor, Intel Q1702, 2xHDMI, 1xDisplayPort, 4xGbE LAN, 6xUSB 3.0, 2xUSB 2.0, CFast, mSATA, 2x2.5" SATA HDD bay, 2xPCIe Mini, 9-36VDC Power input
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
32
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 8xUSB, DC Input, Display Port, 1xDB25 DIO, CFast slot
System Power Input
Input Voltage DC
9 V
Input Voltage AC
90..264 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 8.1, Windows 10 IoT Enterprise, Windows 10, Astra Linux
Dimensions and weight
Width
280 mm
Height
70 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms
Available until
до 2023
Standards and Certifications
Certifications
EAC
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
32
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 8xUSB, DC Input, Display Port, 1xDB25 DIO, CFast slot
System Power Input
Input Voltage DC
9 V
Input Voltage AC
90..264 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 8.1, Windows 10 IoT Enterprise, Windows 10, Astra Linux
Dimensions and weight
Width
280 mm
Height
70 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms
Available until
до 2023
Standards and Certifications
Certifications
EAC
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
32
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 8xUSB, DC Input, Display Port, 1xDB25 DIO, CFast slot
System Power Input
Input Voltage DC
9 V
Input Voltage AC
90..264 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 8.1, Windows 10 IoT Enterprise, Windows 10, Astra Linux
Dimensions and weight
Width
280 mm
Height
70 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms
Available until
до 2023
Standards and Certifications
Certifications
EAC
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
2
USB v3.x
6
Digital Input-Output
Channels of DIO
32
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45 Ethernet, 8xUSB, DC Input, Display Port, 1xDB25 DIO, CFast slot
System Power Input
Input Voltage DC
9 V
Input Voltage AC
90..264 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 8.1, Windows 10 IoT Enterprise, Windows 10, Astra Linux
Dimensions and weight
Width
280 mm
Height
70 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms
Available until
до 2023
Standards and Certifications
Certifications
EAC
Dimensions
Net Weight
4 kg
Gross Weight
5 kg

Documentation
Datasheet eBOX670-891
Documentation
Datasheet eBOX670-891
Documentation
Datasheet eBOX670-891
Documentation
Datasheet eBOX670-891
