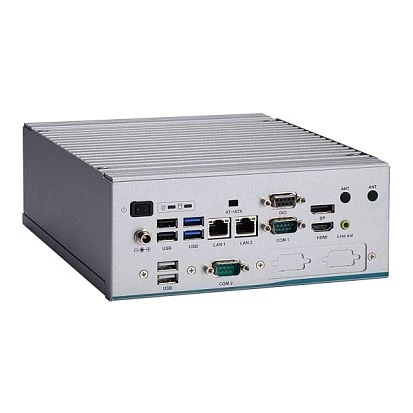

eBOX640-521-FL-DC

eBOX640-521-FL-DC

AXIOMTEK
SKU: 08806000

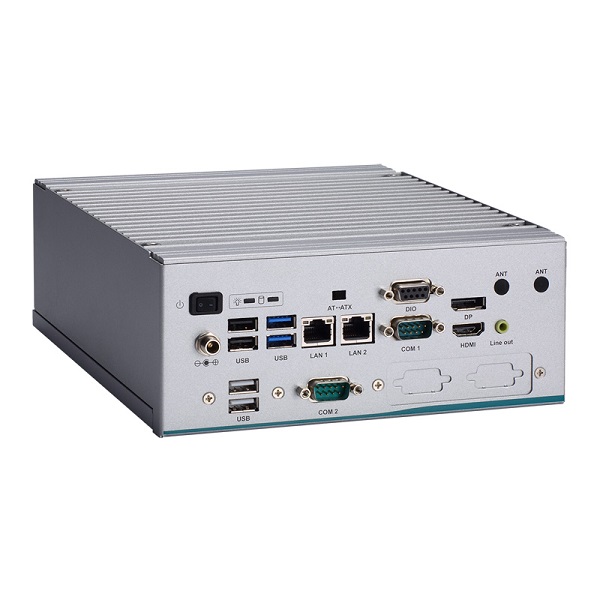

Fanless Embedded System with LGA1151 Socket for 8th and 9th gen Intel Core i7/i5/i3/Celeron Processor and Intel H310 Chipset, DDR4, DP/HDMI, 2xGbE LAN, 2xCOM, 4xUSB 2.0, 2xUSB 3.0, 2x2.5" SATA HDD bay, M.2 Key E 2230, MiniPCIe, Audio
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input, Display Port, 1xDP
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
Direct current
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
142 mm
Height
58 mm
Depth
87 mm
Operating Conditions
Operating Temperature
-10..50 °C
Vibration
3 Grms, 5 ~ 500Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3 kg
Gross Weight
3.6 kg
