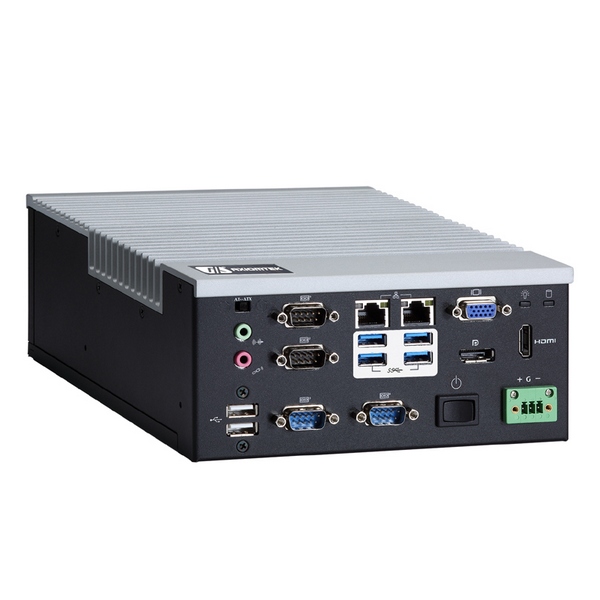

eBOX640-500-FL-DC

eBOX640-500-FL-DC

AXIOMTEK
SKU: 07383300
Fanless Embedded System with LGA1151 Socket for 7th/6th gen Intel Core i7/i5/i3/Celeron Processor and Intel H110 Chipset, DDR4, DP/HDMI/VGA, 2xGb LAN, 4xCOM, 2xUSB 2.0, 4xUSB 3.0, 2x2.5" SATA HDD bay, mSATA, SIM Slot, MiniPCIe, Audio
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
10 V
Software
Operating System Compatibility
Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
182 mm
Height
82 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-10..55 °C
Vibration
2 Grms, 5-500 Hz
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.1 kg
Gross Weight
3.6 kg
