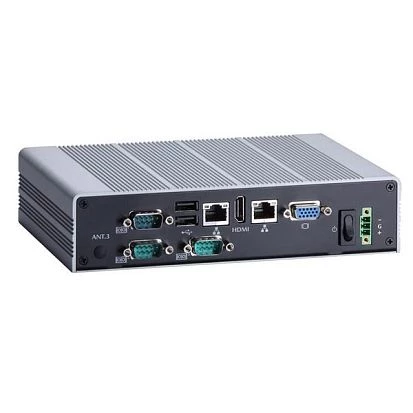

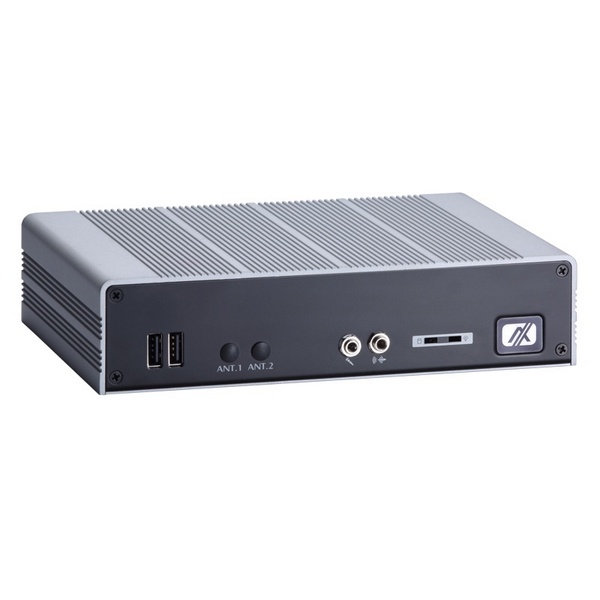

eBOX626-842-FL-J1900-DC

eBOX626-842-FL-J1900-DC

AXIOMTEK
SKU: 56095300
Embedded Server with Intel Celeron J1900, DDR3L, HDMI, VGA, 2xGbE LAN, 3xCOM, 4xUSB, 2.5" SATA HDD Bay, mSATA, SIM Slot, 2x miniPCIe,10-34 Volts DC IN
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
4
USB 2.0
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
128 GB
Extension Slots
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
10 V
Power Consumption
42.5 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8
Dimensions and weight
Width
200 mm
Height
46 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
3 Grms
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.1 kg
Gross Weight
1.8 kg

Documentation
Datasheet eBOX626-842-FL
