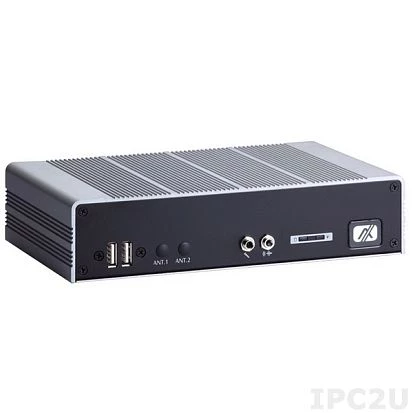

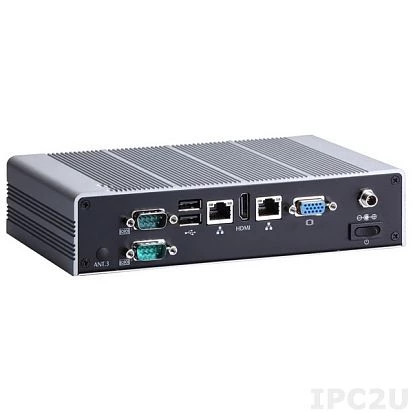

eBOX625-842-FL-J1900-EU
AXIOMTEK
SKU: 06938200
Fanless embedded system with Intel Celeron J1900 2.0GHz quad-core SoC, DDR3L, 2GbE LAN, 4 USB, 2 COM, 8 CH DI/DO, 36W AC/DC adapter, EU power cord
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8
Dimensions and weight
Width
200 mm
Height
46 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
CFast: 3 Grms, 5...500Hz, X, Y, Z directions
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
