Embedded Industrial Edge Computer

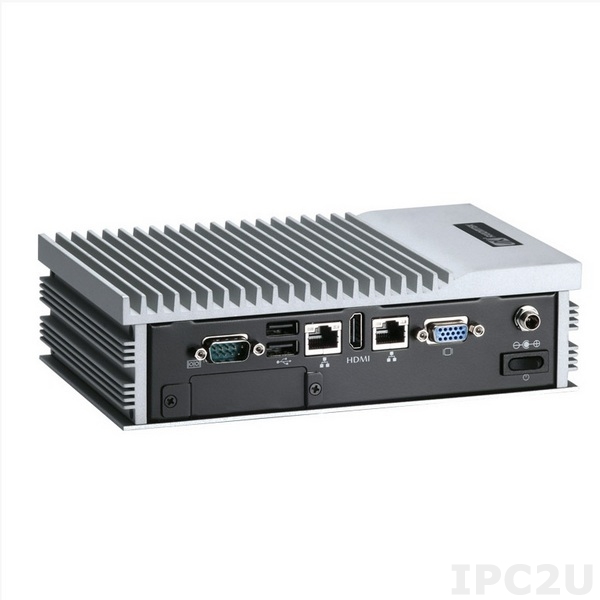

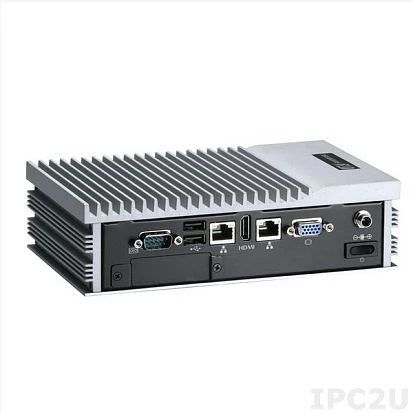

eBOX620-841-FL-DC-E3845

eBOX620-841-FL-DC-E3845

AXIOMTEK
SKU: 09123400
Fanless embedded system with Intel Atom E3845 1.91GHz, 4xCOM, 2xLAN, 4xUSB, 1xVGA, 1xHDMI, 1xDIO, CFast, 1x2.5" SATA HDD bay, 2xMini-PCIe, 12VDC-in, P.Adapter 12V 60W & cord, Vesa Mount Kit
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, DB9 DIO
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
200 mm
Height
56 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
CFast: 3 Grms, 5-500 Hz, X, Y, Z directions
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2 kg
Gross Weight
2.7 kg
