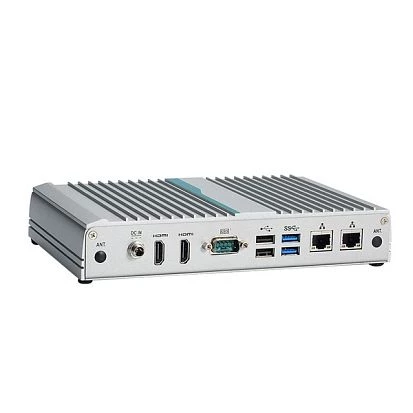

eBOX100-312-FL-DC-N4200

eBOX100-312-FL-DC-N4200

AXIOMTEK
SKU: 66530500
Fanless embedded system with Intel Pentium N4200 2.5 GHz 2 HDMI 2 GbE LANs and 6 USB (w/o adapter and power cord)
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall, Arm
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB Total
6
USB 2.0
4
USB v3.x
2
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
216 mm
Height
44 mm
Depth
137.65 mm
Operating Conditions
Operating Temperature
-5..60 °C
Vibration
3 Grms, 5 ~ 500Hz
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.15 kg
Gross Weight
1.5 kg
