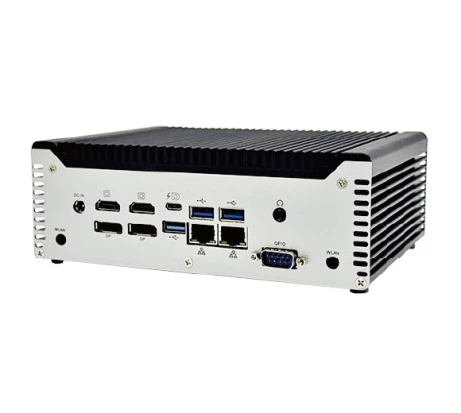

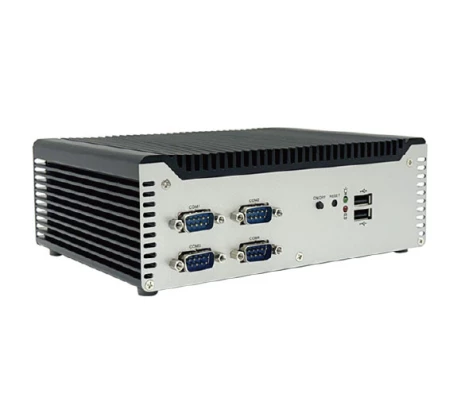

EBOX-RTL-1335U
ICOP
SKU: 80206800
Fanless Compact Box PC, Inte 13th Gen Core i5-1335U up to 4.6GHz CPU, Up to 64GB DDR5 RAM, 2xDP, 2xHDMI, 2x2.5GbE LAN, 1xUSB Type-C DP Alt, 3xUSB 3.2, 4xCOM, 8-bit GPIO, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 12-36VDC-in with 90W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration

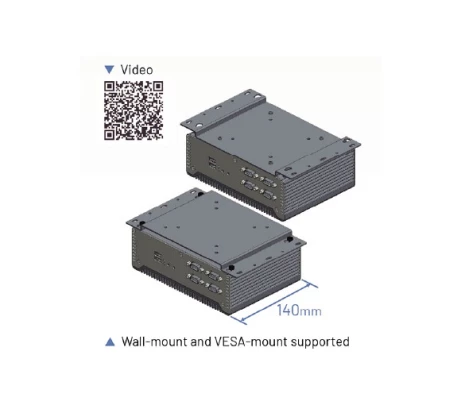

Desktop, Wall, Wall VESA 100, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, 2xDisplayPort, Type C DP
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces

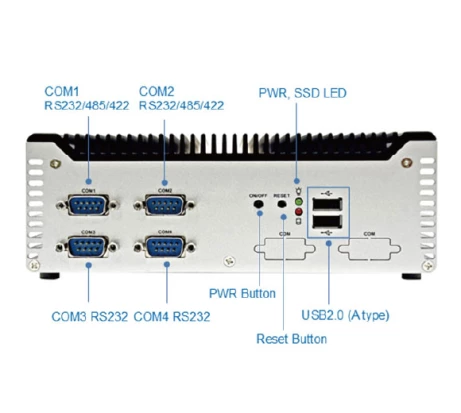

COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B, 2242 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors

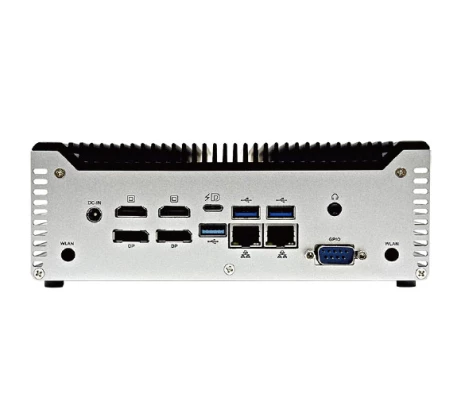

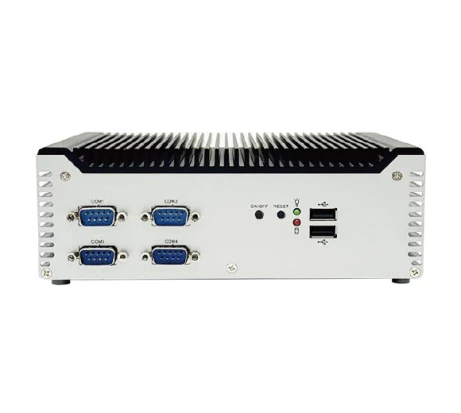

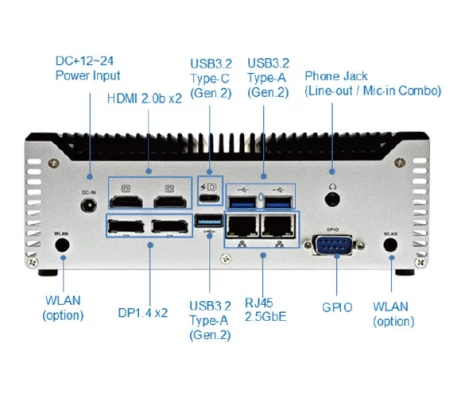

4xDB9, 2xHDMI, 2xRJ45 Ethernet, 5xUSB, Line Out, DC Input, 2xDisplayPort, DB9 GPIO, USB type C
System Power Input
Input Voltage DC
12..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
193.2 mm
Height
67 mm
Depth
140 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC, VCCI
Dimensions
Net Weight
2.2 kg
Gross Weight
2.4 kg
