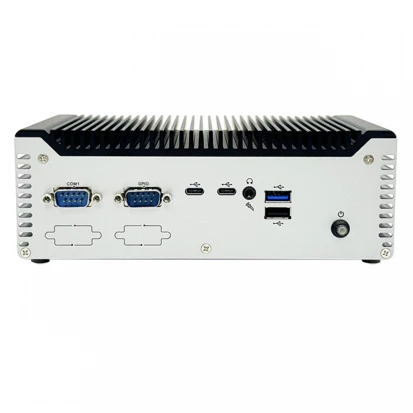

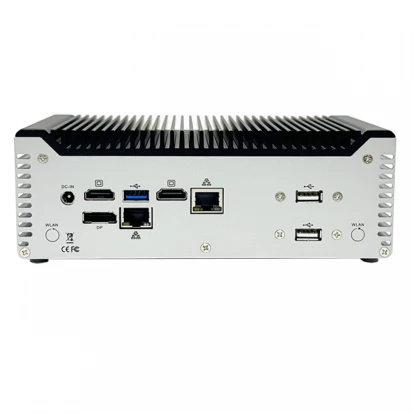

EBOX-EHL-6412
ICOP
SKU: 80153500
Compact Embedded Box PC, Intel Celeron J6412 2.0GHz CPU, Up to 32GB DDR4 RAM, DP, 2xHDMI, 2x2.5GbE LAN, 2xUSB Type-C, 2xUSB 3.0, 3xUSB 2.0, 1xCOM, 8-bit GPIO, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 12VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall, Wall VESA 100, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI
Ethernet
Controller Type
Intel i226
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E, 2260 M
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 4xRJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, Display Port, DB9 GPIO, 2xUSB type C
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
193.2 mm
Height
108.8 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC, VCCI
Dimensions
Net Weight
1.7 kg
Gross Weight
2.4 kg
