EBOX-3352DX3-RCA

EBOX-3352DX3-RCA

ICOP
SKU: 57090500

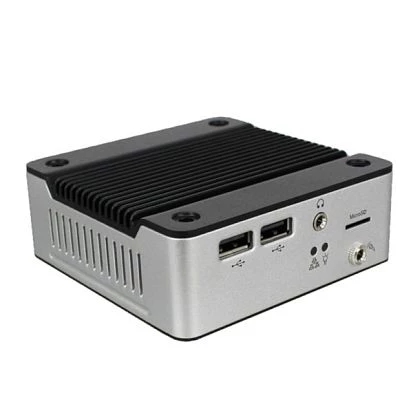

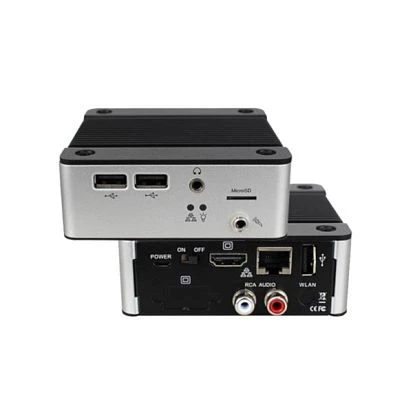

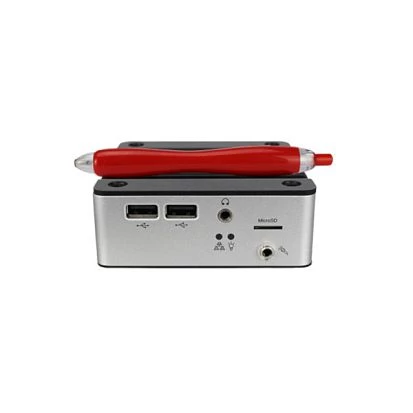

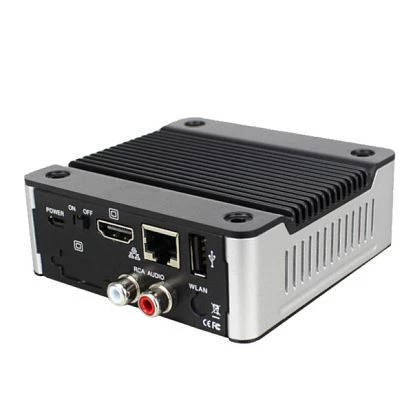

Compact Embedded System with Vortex86DX3 1GHz CPU, 2GB DDR3 RAM, HDMI, 1xLAN, 3xUSB, RCA Jack Audio In/Out (w/ isolation), Micro SD, Mini PCIe,+5V DC-in, External Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall VESA 75
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100 Mbit/s
1
Interfaces
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
MicroSDHC
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, RJ45 Ethernet, 3xUSB, Audio Out, Mic In, RCA, MicroSD card slot
System Power Input
Input Voltage DC
5 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
95 mm
Height
95 mm
Depth
35 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
0.28 kg
Gross Weight
0.5 kg

Documentation
EBOX-3352DX3-RCA-Datasheet

Get a Quote

ICOP
SKU: 57090500
EBOX-3352DX3-RCA
EBOX-3352DX3-RCA
EBOX-3352DX3-RCA
EBOX-3352DX3-RCA
