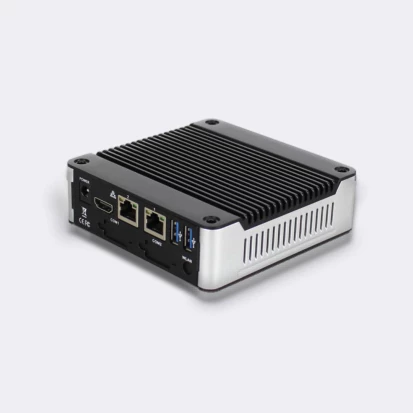

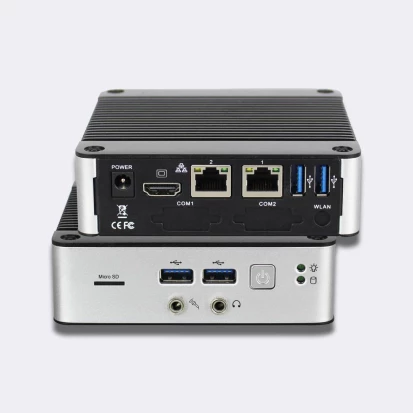

EB-58N8-L1C2F

EB-58N8-L1C2F

ICOP
SKU: 57019200
Fanless Mini Box-PC, Intel Celeron N3160 CPU, 8GB DDR3L RAM, HDMI, 1xGbE LAN, 4xUSB 3.0, 2xCOM (RS232), MicroSD slot, 1x2.5" Drive Bay, 1xM.2 2230 Key-E, Audio, 12VDC-in with Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Socket
FCBGA1170
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Realtek RTL8111H
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
MicroSD
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2230 E
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, MicroSD card slot
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
115 mm
Height
35 mm
Depth
115 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
0.51 kg
Gross Weight
1.1 kg

Documentation
EB-58N8-Datasheet.pdf
