EACIM20-Series

Winmate
SKU: 57907400

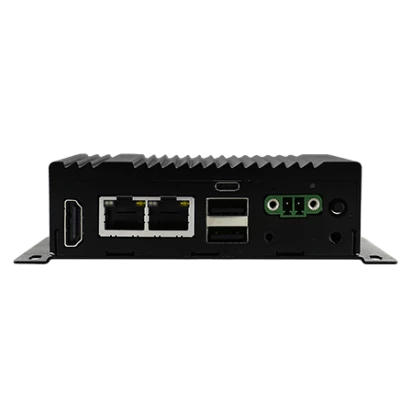

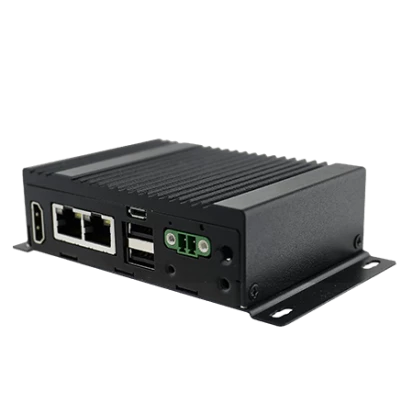

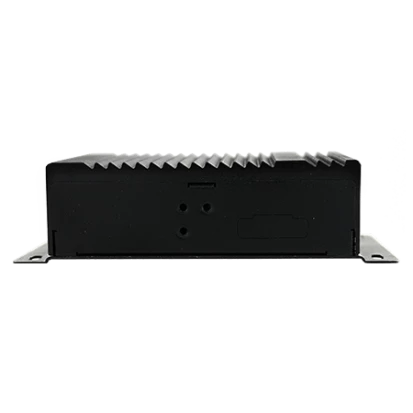

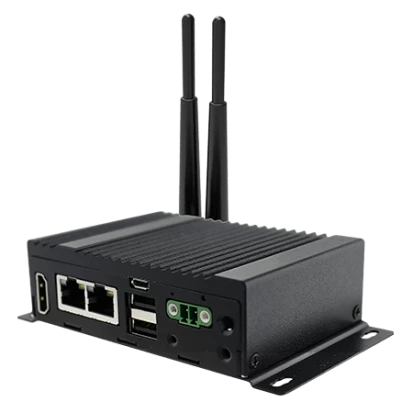

IoT Gateway, EAC-Mini Series, Microsoft Azure Certified, IP30, ARM Cortex-A53 2GHz CPU, 4GB LPDDR4 RAM, 32GB eMMC, HDMI Opt., 2xGbE LAN, 2xUSB 2.0, 1xMicroUSB OTG, Optional WiFi/BT/WWAN LTE, Android 11, 9-36VDC Terminal Block
Price on request
Available on order
Available on order
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
CPU Support Type
ARM Cortex
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
3
USB 2.0
3
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
1
M.2
1
Antenna characteristics
Cellular interfaces
4G (Optional)
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Ubuntu
Operating System Installed
Android
Dimensions and weight
Width
100 mm
Height
31 mm
Depth
70 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
30-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.4 kg
Gross Weight
0.65 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
