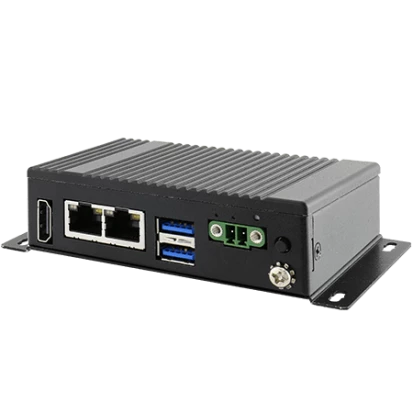

EACIEK20-Series

EACIEK20-Series

Winmate
SKU: 57907600
IoT Gateway, EAC-Mini Series, AWS IoT Greengrass, IP30, Intel Celeron N6211 1.2GHz CPU, 4GB LPDDR4 RAM, 32GB eMMC, HDMI Opt, 2x2.5GbE LAN, 2xUSB 3.2, 1xM.2 2242 Key-B, Optional (WiFi/BT/WWAN/3xCOM/DIO/2xCAN/3xUSB), 9-36VDC Terminal Block w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
CPU onboard
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
2,5 Gbit/s
2
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Input Voltage AC
100..240 V
Software
Operating System Installed
Ubuntu
Dimensions and weight
Width
100 mm
Height
31 mm
Depth
70 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.4 kg
Gross Weight
0.65 kg
Construction
