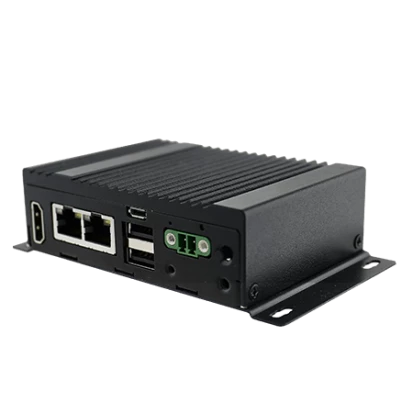

EACFA20-Series
Winmate
SKU: 57907500
IoT Gateway, EAC-Mini Series, AWS IoT Greengrass, IP30, NXP i.MX6 Dual-Core 1GHz CPU, 1GB RAM, 16GB eMMC, HDMI Opt, 2xGbE LAN, 2xUSB 2.0, 1xMicroUSB OTG, 1xFull-Size mPCIe, Optional (WiFi/BT/WWAN/3xCOM/DIO/2xCAN/3xUSB), Ubuntu, 9-36VDC Terminal Block
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
Processor Installed
NXP i.MX6 dual-core
Socket
CPU onboard
Max CPU frequency
1 GHz
Memory
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
2
Interfaces
USB Total
3
USB 2.0
3
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Input Voltage AC
100..240 V
Software
Operating System Installed
Ubuntu
Dimensions and weight
Width
100 mm
Height
31 mm
Depth
70 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.4 kg
Gross Weight
0.65 kg
