DM-124PW/PM-2000

Arestech
SKU: 57266800

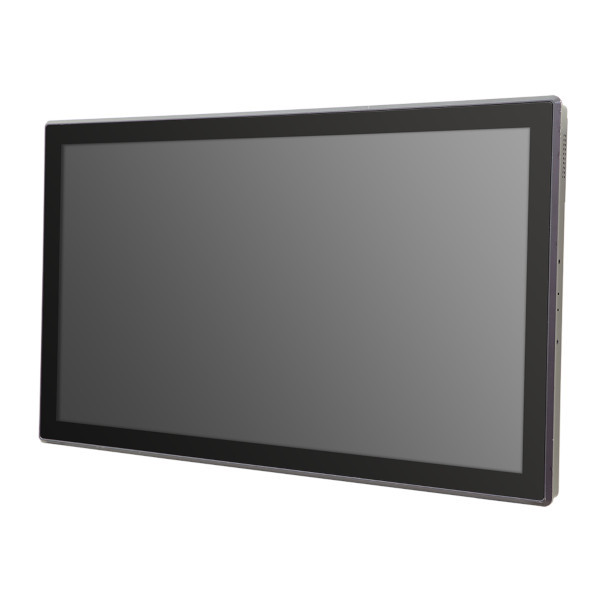

24" TFT LCD Fanless Panel PC, 1920x1080, 300 cd/m2, IP65 Front, PCAP touch, Intel Celeron J1900 2.0 GHz, up to 8GB DDR3L, 1x 2.5" SATA drive bay, CFast, 5xUSB, 2xLAN, 1xVGA, 1xDP, 2xCOM, 8xDIO, Audio, 9-48 VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector, Jack 3.5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
584 mm
Height
353 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
9.5 kg
Gross Weight
12.3 kg
Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector, Jack 3.5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
584 mm
Height
353 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
9.5 kg
Gross Weight
12.3 kg
Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector, Jack 3.5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
584 mm
Height
353 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
9.5 kg
Gross Weight
12.3 kg
Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 1xUSB, Mic In, Line Out, DC Input, Display Port, 4xUSB (4-pin), 10-pin connector, Jack 3.5
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
584 mm
Height
353 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
9.5 kg
Gross Weight
12.3 kg

Documentation
DM-1XXP-PM-2000-Datasheet
Documentation
DM-1XXP-PM-2000-Datasheet
Documentation
DM-1XXP-PM-2000-Datasheet
Documentation
DM-1XXP-PM-2000-Datasheet
