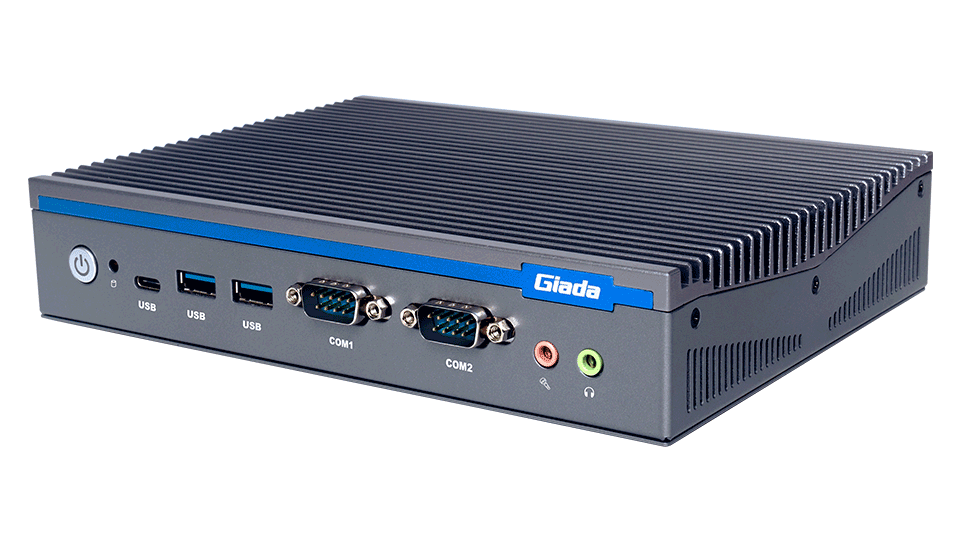

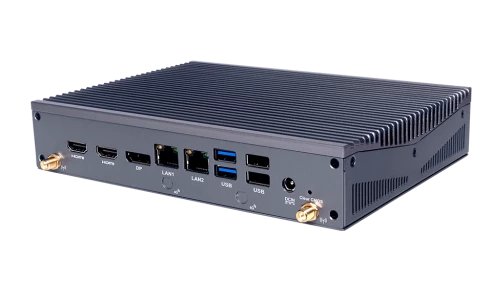

DF612-i5-1235U
Giada
SKU: 57678100
Embedded Signage Player PC, Intel 12th Gen Core i5-1235U CPU, Up to 64GB DDR4 RAM, 1xDP, 2xHDMI, 2xGbE LAN, 2xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xUSB-C, 1xM.2 2242/2280 Key-M, 1xM.2 2230 Key-E, 1xM.2 3042 Key-B, TPM2.0 Optional, Audio, 19VDC-in Jack, 0..45C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics, Intel UHD Graphics
Ethernet
Controller Type
Intel i219-LM, Realtek RTL8111H
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
7
USB 2.0
2
Extension Slots
Total
3
M.2
3
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45, 6xUSB, Mic In, Line Out, DC Input, Display Port, SIM Card Slot, USB type C
System Power Input
Power Consumption
65 W
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
200 mm
Height
150 mm
Depth
40 mm
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
1.2 kg
Gross Weight
2.15 kg
