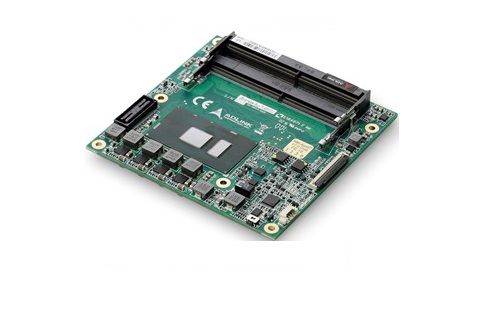

cExpress-SL-i3-6100U

cExpress-SL-i3-6100U

ADLink
SKU: 09386500
Compact COM Express Type 6 module with Intel Core i3-6100U, GT2 graphics, DDR4, DDI, LVDS, eDP, GbE, 4xUSB 3.0, 4xUSB 2.0, 3xSATA 6GB/s, Audio, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, eDP
Ethernet
Controller Type
Intel i219-LM
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC886
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 10
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
5-95%
Dimensions
Gross Weight
0.5 kg
