CEM700-D1577

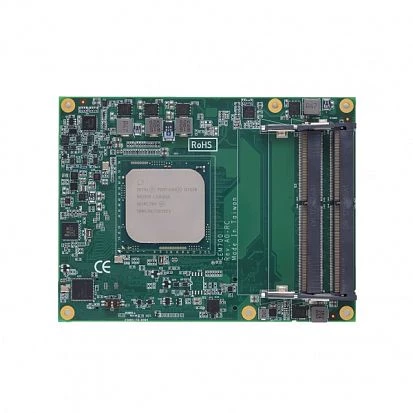

CEM700-D1577

AXIOMTEK
SKU: 08321900
Embedded COM Express Type 7 module with Intel Xeon D-1577 1.3/2.1GHz, DDR4 ECC, 1x10/100/1000 LAN, 2x10GBASE-KR LAN, 2xCOM, 4xUSB 3.0, 4xUSB 2.0, 2xSATA-600, 1xPCIe x16, 1xPCIe x8, 8xPCIe x1, I2C, LPC, SPI, TPM 2.0, SMBus
Price on request
Available
Available

System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
СPU Generation/Family
Broadwell
CPU Support Type
Xeon
Processor Installed
Intel Xeon D-1577
Socket
CPU onboard
Max CPU frequency
2.1 GHz
Number of CPU
1
Chipset
Chipset
Intel Broadwell SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
32 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Interfaces
COM Total
2
USB Total
8
USB 2.0
4
USB v3.x
4
Extension Slots
PCI Express x16
1
PCI Express x8
1
PCI Express x4
1
PCI Express x1
8
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.5 kg
