CEM311PG-N4200+4GB

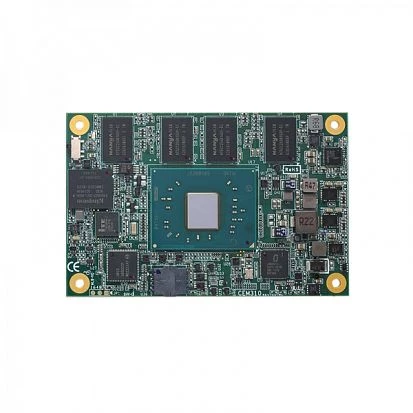

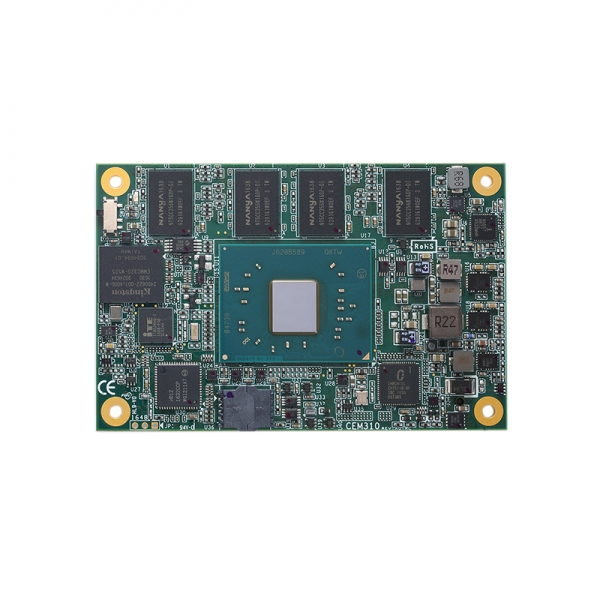

CEM311PG-N4200+4GB

AXIOMTEK
SKU: 08085100
Embedded COM Express Type 10 module with Intel Pentium N4200 2.5GHz, 4GB DDR3L, eMMC, LVDS/DDI, GbE LAN, 8xUSB 2.0, 2xUSB 3.0, 2xSATA-600, LPC, SPI, 2xSerial TX/RX, 1xI2C, SMBus, Audio
Price on request
Available
Available

System Architecture
Form Factor
COM Express Mini
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, DDI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
USB Total
10
USB 2.0
8
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x1
4
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
84 mm
Length
55 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
1 kg
