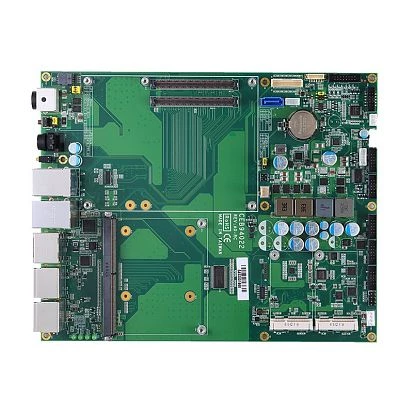

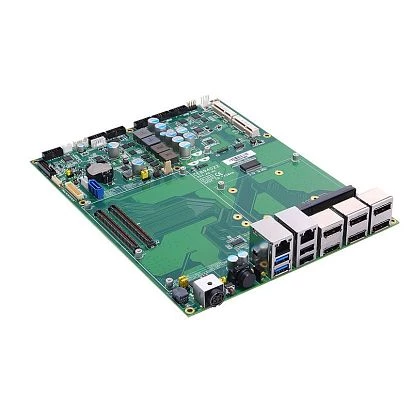

CEB94022

CEB94022

AXIOMTEK
SKU: 11057100
COM Express Baseboard COM Express Type-6, LVDS, VGA, HDMI, DP, 2xGbE LAN, 4xCOM, 2xUSB 3.0, 4xUSB 2.0, 19-24VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
Chipset
Chipset
SoC
Graphic
Interfaces
DisplayPort, LVDS, HDMI, VGA, 4xDisplayPort
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
RS-232/422/485
3
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
SATA 3
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Dimensions and weight
Width
245 mm
Length
190 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
