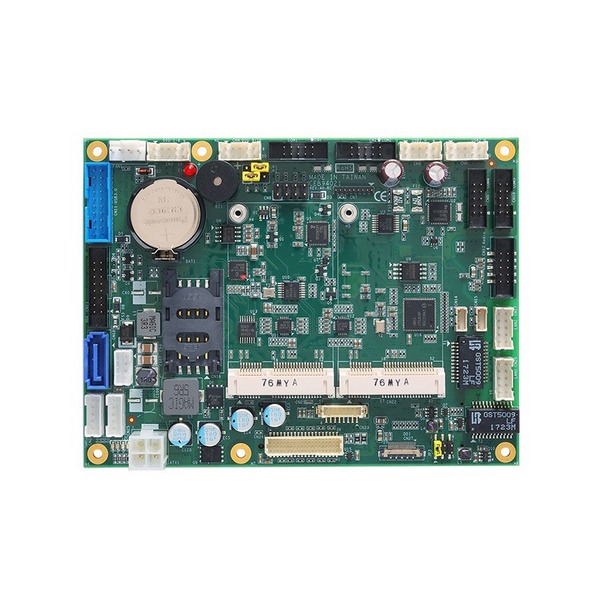

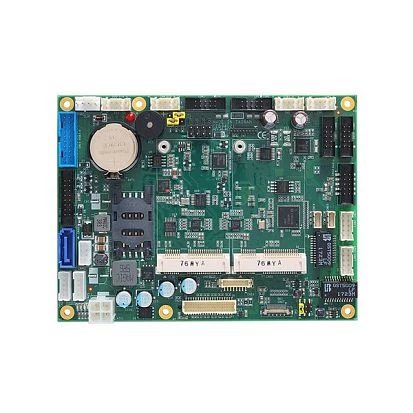

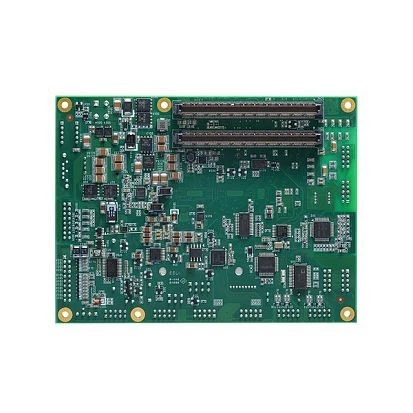

CEB94021VGA

CEB94021VGA

AXIOMTEK
SKU: 07681000
COM Express Type-10 Baseboard COM Express Type-6, VGA, 1xRS232, 3x485, 1xSATA,2xGLAN, HD Audio, 2xUSB 2.0, 4xUSB 3.0, DIO, mSATA,1xMini-PCIe
Price on request
Available
Available

System Architecture
Form Factor
Proprietary
Construction
Type
Fanless
Graphic
Interfaces
LVDS, VGA, DDI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
RS-232/422/485
3
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Extension Slots
Total
4
SIM Card slots
1
Mini-PCIe/Mini Card
2
Connectors
Internal Ports
4xCOM, SATA 3, 4-pin Power, 10-pin Audio, 20-pin LVDS, 19-pin USB 3.0, 2xGPIO, 2x8-pin Ethernet, 5-pin SMBus, 16-pin VGA, 2x220-pin COM Express, I2C, 40-pin eDP
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
