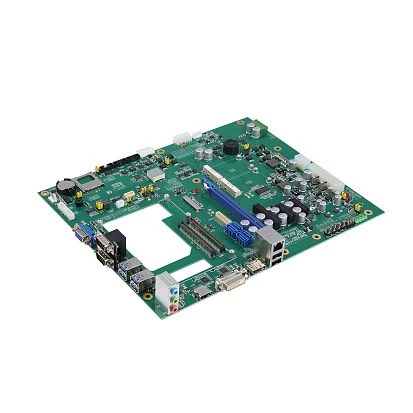

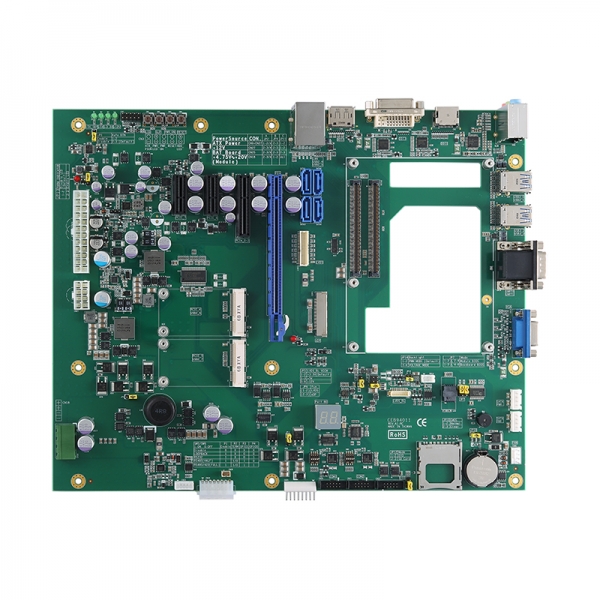

CEB94011

CEB94011

AXIOMTEK
SKU: 08304500
COM Express Type 6 evaluation baseboard with PCI Express, 1 GbE LAN, HDMI/DisplayPort and multiple I/O features
Price on request
Available
Available

System Architecture
Form Factor
Proprietary
Construction
Type
Fanless
Graphic
Interfaces
DisplayPort, DVI, LVDS, HDMI, VGA, eDP
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
RS-232/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SD Slots
1
Extension Slots
Total
4
PCI Express x16
1
PCI Express x4
1
PCI Express x1
2
Mini-PCIe/Mini Card
2
Connectors
Internal Ports
2xCOM, 10-pin DIO, 2x20-pin LVDS, 5-pin SMBus, 2x220-pin COM Express, I2C, 40-pin eDP
Connectors
2xDB9, DVI, DB15 VGA, HDMI, RJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display Port
Dimensions and weight
Width
244 mm
Length
291 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.83 kg
Gross Weight
0.83 kg
