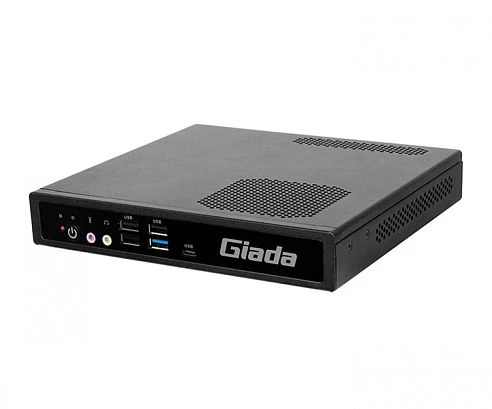

BQ611-Series

BQ611-Series

Giada
SKU: 57578400
Embedded PC, Inte 10th/11th gen Core i9/i7/i5/i3/Pentium/Celeron CPU, Intel H510/B560 Chipset, Up to 32GB DDR4 RAM, DP, HDMI, VGA, 2xGbE LAN, 1xRS-232, 1xUSB Type-C, 8xUSB, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 19VDC-in, 0..45C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fan
CPU
СPU Generation/Family
Comet Lake, Rocket Lake-S
Socket
LGA1200
Memory
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111H
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB Total
9
USB 2.0
6
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input, Display Port, USB type C
Software
Operating System Compatibility
Linux OS, Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
200 mm
Height
185 mm
Depth
35.5 mm
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
2.15 kg
