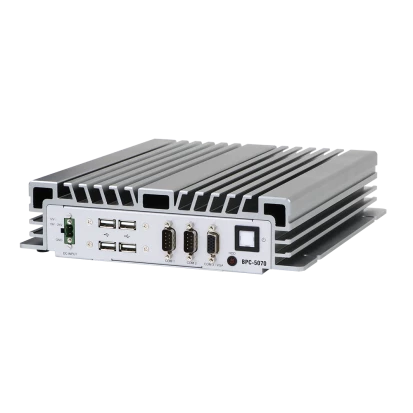

BPC-5070-2A1

BPC-5070-2A1

Arestech
SKU: 57220800
Fanless Embedded Box PC, support 6th gen i7/i5/i3 LGA1151 35W CPU, H110, up to 32GB DDR4 SO-DIMM, 4x USB3.0, 4xUSB2.0, 2xRS-232/422/485, 2xGbE, 2xHDMI, VGA, 12-24V DC-In, 2-pin Phoenix Connector
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Gen9 Graphic engine
Interfaces
2xHDMI, VGA
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12 V
Power Consumption
77.6 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8.1, Ubuntu, Windows Embedded Professional 7 (64 bit), Windows 10
Dimensions and weight
Width
238 mm
Height
61 mm
Depth
245 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, Random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, Half Sine, 11 ms Duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3 kg
Gross Weight
4.2 kg
Construction
Construction Chassis
Aluminium Chassis
