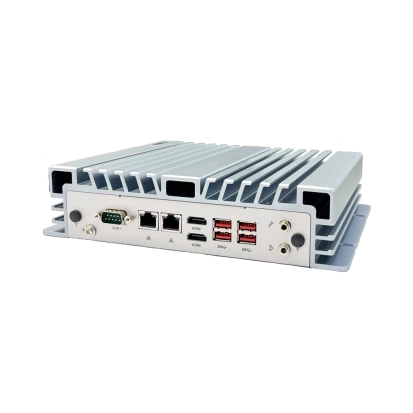

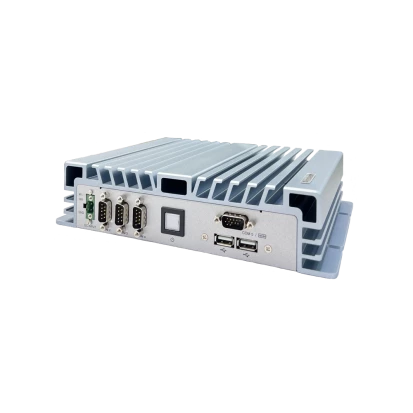

BPC-3112-1A1
Arestech
SKU: 57925700
Fanless Embedded Server, Intel Core i5-1235U 3.3GHz CPU, Up to 64GB DDR4, 2xHDMI, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 4xRS232/422/485, Audio, 12-bit DIO, 1xFull-Size Mini-PCIe, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 9-36VDC-in, -20..60C Operating Temp.
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM 260-pin
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
12
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Micro-SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC input (terminal block), DB15 GPIO
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows IoT Enterprise 10, Windows 11
Dimensions and weight
Width
238 mm
Height
55 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
1.5Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
50G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
