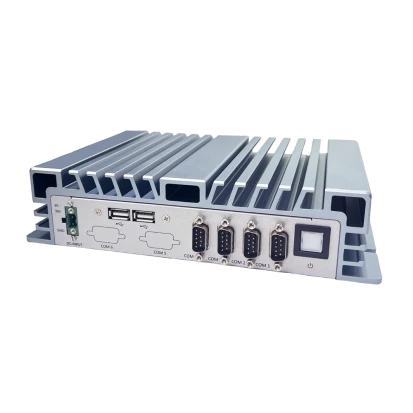

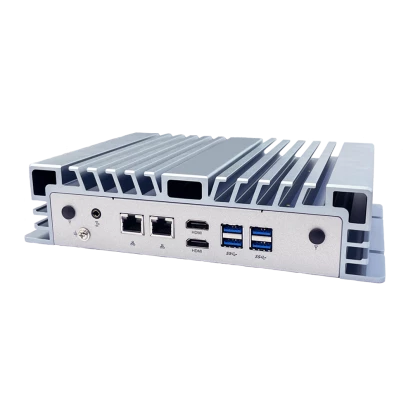

BPC-3064-1A1
Arestech
SKU: 57925600
Embedded Box PC, Intel Celeron J6412 2.6GHz CPU, Up to 32GB DDR4 RAM, 2xHDMI, 2xGbit LAN, 2xRS232, 2xRS232/422/485, 4xUSB 3.2, 2xUSB 2.0, Audio, 1xSATA 3, M.2 2280 Key-M, 1xFull-Size Mini-PCIe, 9..36V DC-In, -20..60C Operating Temperature
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM 260-pin
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows IoT Enterprise 10, Windows 11
Dimensions and weight
Width
238 mm
Height
55 mm
Depth
155 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
5Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
50G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
