BPC-3040-2A1

BPC-3040-2A1

Arestech
SKU: 57000300

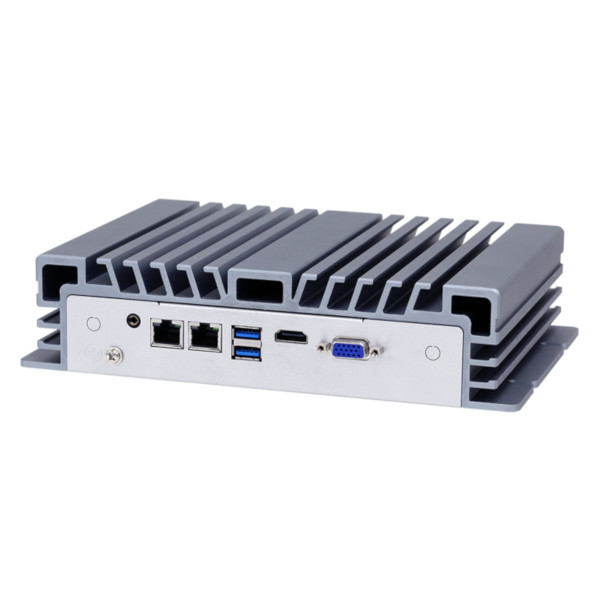

Embedded Box PC, Intel Pentium N4200, Up to 8GB DDR3L SDRAM, VGA, HDMI, 2xGbit LAN, 2xRS232, 1xRS232/422/485, 4xUSB, 32bit DIO, SATA2, M.2 2242, 9..36V DC-In, -20..+70C Operating temperature
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
GPIO
Yes
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45, 6xUSB, Line Out, DC Input, DB15 GPIO
System Power Input
Input Voltage DC
9 V
Power Consumption
9.4 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
238 mm
Height
55 mm
Depth
165 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
3 kg
