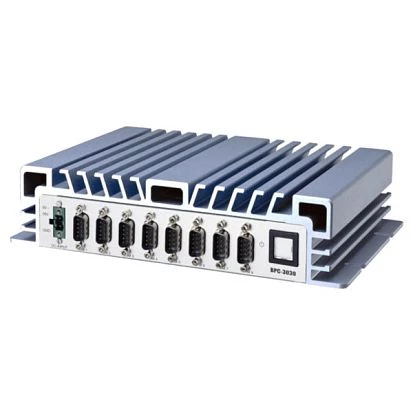

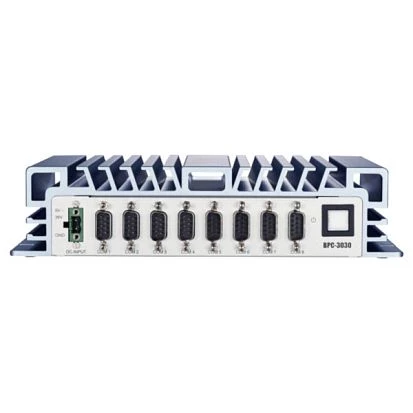

BPC-3030-1A1

BPC-3030-1A1

Arestech
SKU: 56992600
Fanless Embedded Mini-PC, Intel Celeron J1900 2.0 GHz, up to 8GB DDR3L SO-DIMM RAM, 2.5" SSD Bay, HDMI, VGA, 2xGbE LAN, 2xUSB3.0, 2xUSB 2.0, 4xRS-232, line out, 9-36 V DC-in, -20..60C Operating Temp.
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
HDMI, VGA
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Power Consumption
14 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1, Ubuntu, Windows 10
Dimensions and weight
Width
238 mm
Height
55 mm
Depth
165 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.5 kg
Gross Weight
2.87 kg
