BPC-3025-2A1

BPC-3025-2A1

Arestech
SKU: 56986500

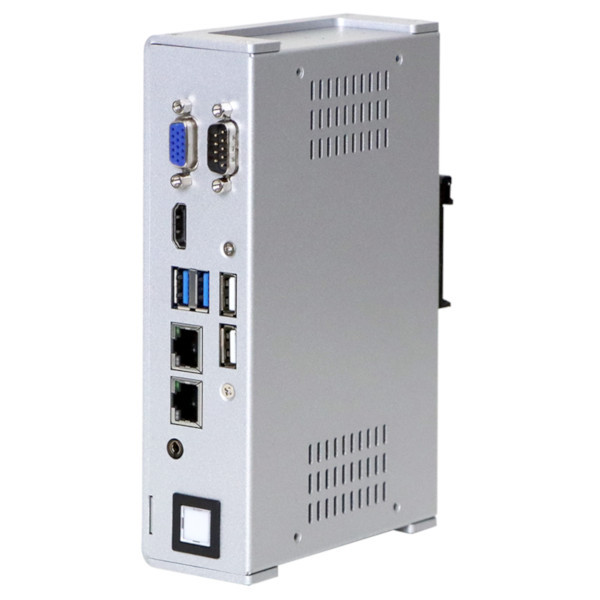

DIN Rail IoT Gateway Box PC, Intel Celeron N3350, up to 8GB DDR3L SODIMM RAM, VGA, HDMI, 2xGbit LAN, 1xRS232, 1xRS232/422/485, 4xUSB, 9..36V DC-In, -20..+60C Operating temperature
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Power Consumption
38.2 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Linux kernel 4.x
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.8 kg
Gross Weight
1.9 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Power Consumption
38.2 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Linux kernel 4.x
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.8 kg
Gross Weight
1.9 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Power Consumption
38.2 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Linux kernel 4.x
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.8 kg
Gross Weight
1.9 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Power Consumption
38.2 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Linux kernel 4.x
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
115 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.8 kg
Gross Weight
1.9 kg

Documentation
BPC-3025-Datasheet User Manual v1.0 BPC-3025
Documentation
BPC-3025-Datasheet User Manual v1.0 BPC-3025
Documentation
BPC-3025-Datasheet User Manual v1.0 BPC-3025
Documentation
BPC-3025-Datasheet User Manual v1.0 BPC-3025
