Embedded Industrial Edge Computer

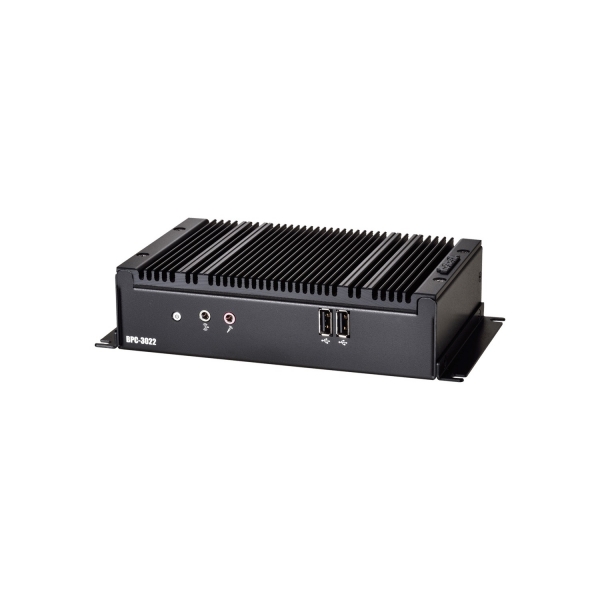

BPC-3022-A1

BPC-3022-A1

Arestech
SKU: 57286900
EOL ** Fanless Embedded Box PC, Intel Celeron N2930, up to 8GB DDR3L RAM, HDMI, DVI-D, 1xGbE LAN, 1xRS232, 5xUSB, 12V DC-In, -20..+60C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, DVI-I, HDMI, RJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Consumption
16 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Ubuntu, Windows 10
Dimensions and weight
Width
172.8 mm
Height
46.1 mm
Depth
112.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.91 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, DVI-I, HDMI, RJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Consumption
16 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Ubuntu, Windows 10
Dimensions and weight
Width
172.8 mm
Height
46.1 mm
Depth
112.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.91 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, DVI-I, HDMI, RJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Consumption
16 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Ubuntu, Windows 10
Dimensions and weight
Width
172.8 mm
Height
46.1 mm
Depth
112.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.91 kg
Gross Weight
1.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, DVI-I, HDMI, RJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Power Consumption
16 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Ubuntu, Windows 10
Dimensions and weight
Width
172.8 mm
Height
46.1 mm
Depth
112.4 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock
50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.91 kg
Gross Weight
1.7 kg

Documentation
User Manual v1.0 BPC-3022
Documentation
User Manual v1.0 BPC-3022
Documentation
User Manual v1.0 BPC-3022
Documentation
User Manual v1.0 BPC-3022
