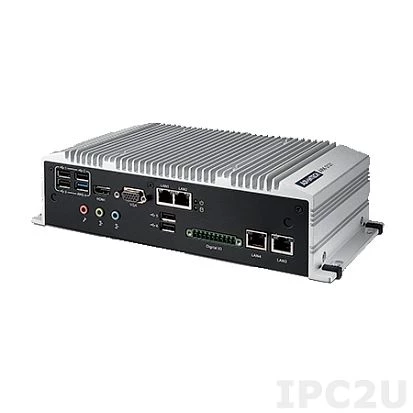

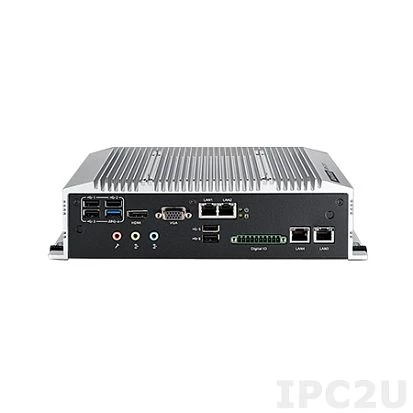

Fanless Embedded Server with Intel Celeron J1900 D1 2GHz, up to 8GB DDR3L, VGA, HDMI, 2xGb LAN, 4xCOM, 4xUSB, Audio, mSATA, 2.5" SATA HDD drive bay, Mini-PCIe, 9...36V DC
ARK-2121L-U0A2E
Advantech
SKU: 08476200
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel Gen7 graphic engine
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
7.3 W
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows 7, Windows 8, Windows Embedded Standart 8.1
Dimensions and weight
Width
264.5 mm
Height
68.4 mm
Depth
133 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
With SSD: 5 Grms, 5 ~ 500 Hz, 1 hr/axis.
Shock
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
3.2 kg
Gross Weight
3.2 kg
