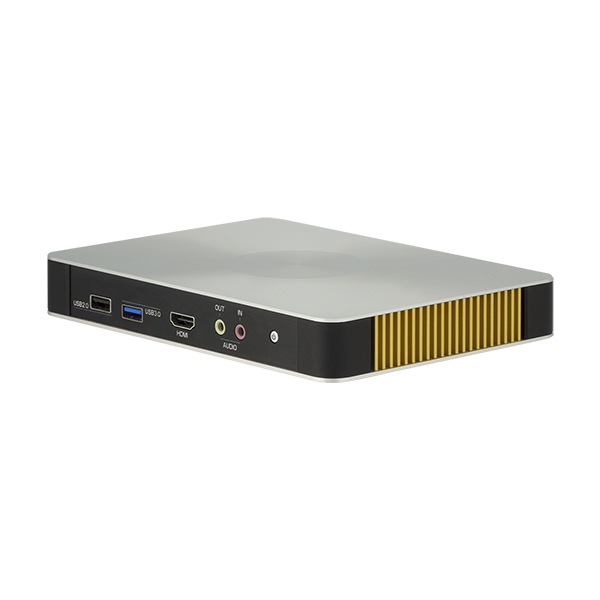

ARES-1230-E

ARES-1230-E

Arbor
SKU: 57846800
Fanless Embedded PC, Intel Celeron N2930 CPU, Up to 8GB DDR3L RAM, DVI-I/HDMI, 2xGbE LAN, 1xUSB 3.0, 3xUSB 2.0, 2xCOM, 1x8-bit DIO, 1xmSATA, 1xMiniPCIe Full-Size, 1xMiniPCIe Half-Size, Audio, 9-36VDC-In, -20..70C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
FCBGA1170
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-I, HDMI
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DVI-I, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
20 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
180 mm
Height
40 mm
Depth
130 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/SSD, according to IEC 68-2-64
Shock
40G peak acceleration (11 m sec. duration), operation; 60G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.9 kg
Gross Weight
1.2 kg
