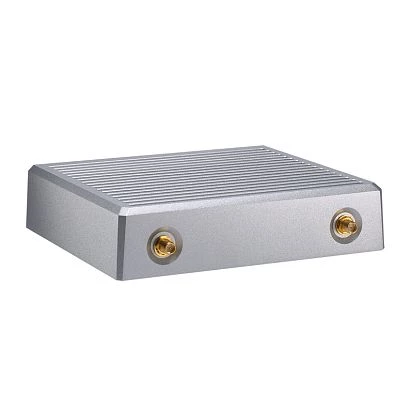

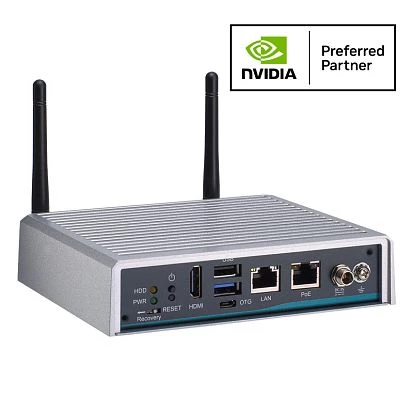

AIE100-ONX-16GB
AXIOMTEK
SKU: 10197200
Fanless Embedded System with CPU Board GPU NVidia Jetson Orin NX, 8-core NVIDIA Arm Cortex A78AE CPU, 1024-core NVIDIA Ampere GPU, 16GB LPDDR5, HDMI, 1xGbE PoE, 1xGbE LAN, 1xUSB 3.2, 1xUSB 2.0, 1xMicroUSB, 12VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
ARM Cortex A78AE
Memory
Form-factor
DDR5
Default on Board Memory
16 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
1
PoE 10/100/1000 Mbit/s
1
Interfaces
USB Total
3
USB 2.0
1
USB v3.x
2
Drive interfaces
M.2
1
MicroSD
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors

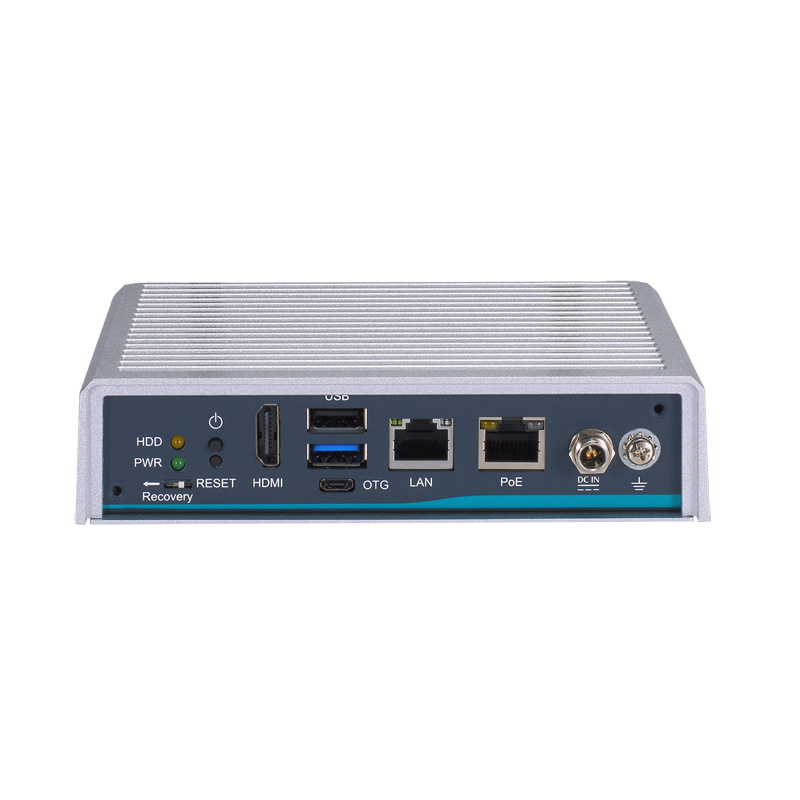

HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input, 1xMicro USB
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
149 mm
Height
35 mm
Depth
130 mm
Operating Conditions
Operating Temperature
-25..50 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
0.93 kg
Gross Weight
1.44 kg
