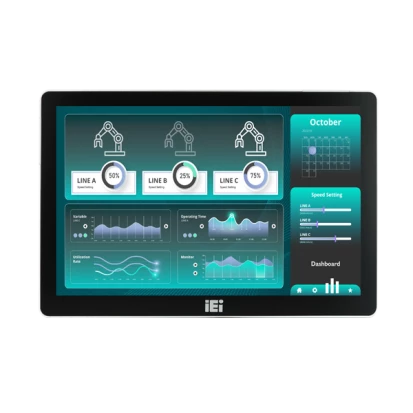

AFL4-W15-EHL-J1/8G

AFL4-W15-EHL-J1/8G

IEI
SKU: 10919500
15.6" 450 cd/m2 1920x1080 Fanless IP65 Panel PC with PCAP Touch, Intel Celeron J6412 (10W) 2.0GHz, 8GB LPDDR4 onboard, HDMI, 2x 2.5GbE LAN, 4xCOM, 2xUSB 3.2, 2xUSB 2.0, WiFi+BT5.2, M.2 2230, 2242, Audio, 12VDC-In
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
15.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225V, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
383.7 mm
Height
239.1 mm
Depth
46.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G 514.5C-1
Shock
5G; 11ms; 100 shocks per axis
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
15.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225V, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
383.7 mm
Height
239.1 mm
Depth
46.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G 514.5C-1
Shock
5G; 11ms; 100 shocks per axis
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
15.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225V, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
383.7 mm
Height
239.1 mm
Depth
46.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G 514.5C-1
Shock
5G; 11ms; 100 shocks per axis
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD
Diagonal
15.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225V, Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
383.7 mm
Height
239.1 mm
Depth
46.3 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Vibration
MIL-STD-810G 514.5C-1
Shock
5G; 11ms; 100 shocks per axis
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.8 kg
Gross Weight
2.44 kg

Documentation
AFL4-W15-EHL_EN 1.pdf
Documentation
AFL4-W15-EHL_EN 1.pdf
Documentation
AFL4-W15-EHL_EN 1.pdf
Documentation
AFL4-W15-EHL_EN 1.pdf

Get a Quote
