+886 (2) 2930 1196
Industrial Automation Systems
+886 (2) 2930 1196
Home
Catalog
Industrial Computers
Industrial Panel PCs
Panel-PCs Fanless
AFL3-W15C-ULT5-i5/P/PC/4G

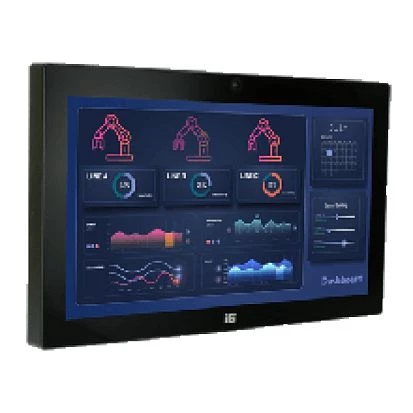

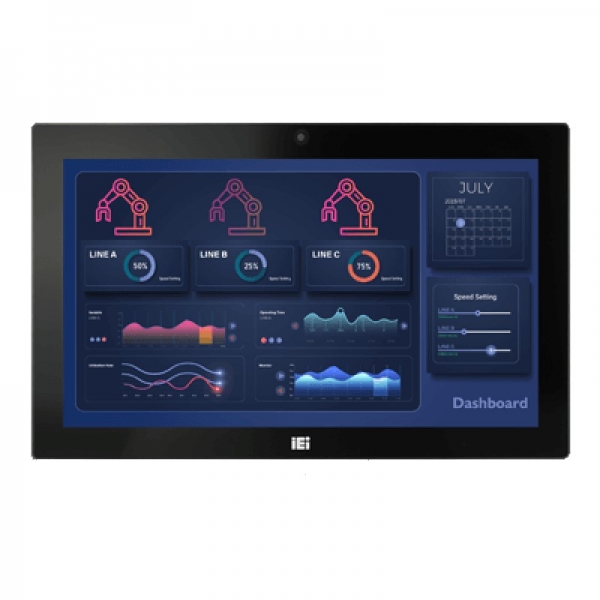

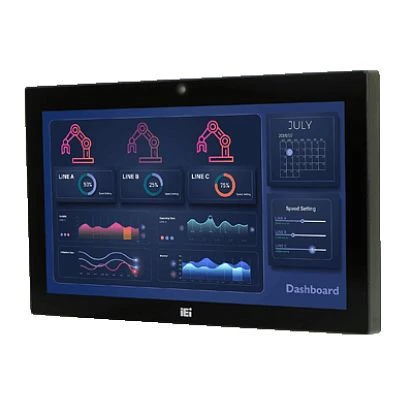

AFL3-W15C-ULT5-i5/P/PC/4G

IEI
SKU: 08965500
15.6" 300 cd/m2 panel PC with Intel Core i5-8365UE 1.6GHz, projected capacitive touch screen, 1x4GB DDR4 RAM, 1x2.5" SATA Drive Bay, HDMI, 2xGbE LAN, 2xCOM, 4xUSB 3.2, M.2, Wi-Fi, Audio, camera 2M, 12V DC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8365UE
Socket
CPU onboard
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
1
RS-232
1
RS-232/422/485
1
USB Total
4
Drive interfaces
M.2
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Dimensions and weight
Width
396 mm
Height
250 mm
Depth
64 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8365UE
Socket
CPU onboard
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
1
RS-232
1
RS-232/422/485
1
USB Total
4
Drive interfaces
M.2
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Dimensions and weight
Width
396 mm
Height
250 mm
Depth
64 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8365UE
Socket
CPU onboard
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
1
RS-232
1
RS-232/422/485
1
USB Total
4
Drive interfaces
M.2
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Dimensions and weight
Width
396 mm
Height
250 mm
Depth
64 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i5-8365UE
Socket
CPU onboard
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
1
RS-232
1
RS-232/422/485
1
USB Total
4
Drive interfaces
M.2
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Dimensions and weight
Width
396 mm
Height
250 mm
Depth
64 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg

Documentation
Datasheet AFL3-WxxC-ULT5
Documentation
Datasheet AFL3-WxxC-ULT5
Documentation
Datasheet AFL3-WxxC-ULT5
Documentation
Datasheet AFL3-WxxC-ULT5
