AFL3-W07A-AL-N1/P/PC/4G

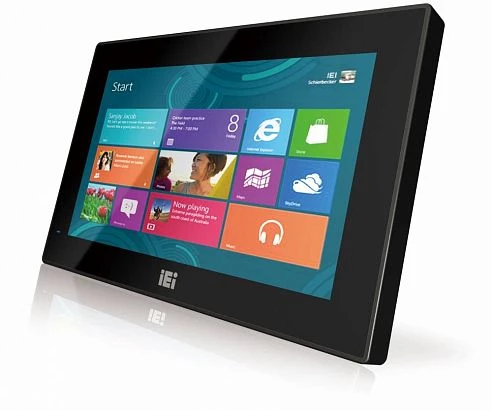

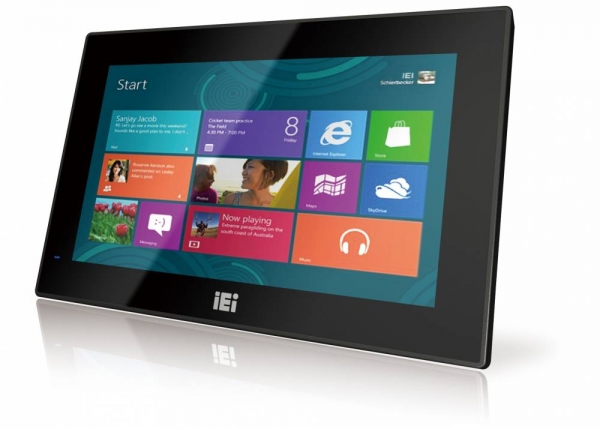

AFL3-W07A-AL-N1/P/PC/4G

IEI
SKU: 08643100
7" 300cd/m2 Fanless Panel PC, Intel Celeron N3350 2.0GHz, PCAP touch screen, 4GB DDR3L RAM, 1xGbit LAN, 1xGbit LAN with PoE (Support PD), 4xUSB, M.2 SATA B/M-Key, Wi-Fi, Audio, 12V DC-In, Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
LED / Controls
Controls
On/Off
Connectors
Connectors

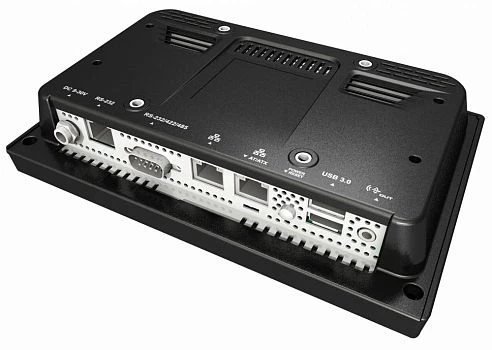

2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
191 mm
Height
127 mm
Depth
43 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE
Automotive
FCC Class A
Dimensions
Net Weight
1 kg
Gross Weight
2 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
