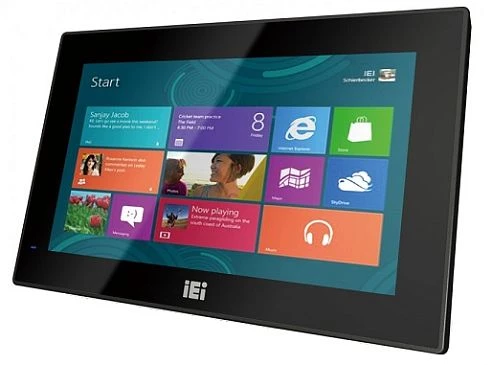

AFL3-12A-BT-J1/PC/2G

AFL3-12A-BT-J1/PC/2G

IEI
SKU: 08366100
12.1" 500 cd/m XGA fanless panel PC with Intel Celeron J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM, R13
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, 19" Rackmount, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, AT/ATX Switch
Connectors
Connectors
DB9, RJ45, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
36 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8
Dimensions and weight
Width
303 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.92 kg
Gross Weight
3.95 kg
