AFL3-12A-AL-J2/P/PC/4G

AFL3-12A-AL-J2/P/PC/4G

IEI
SKU: 08642900

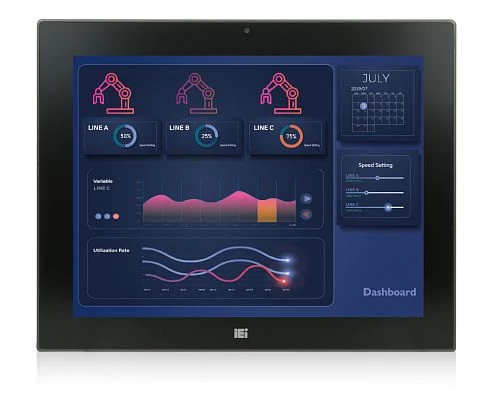

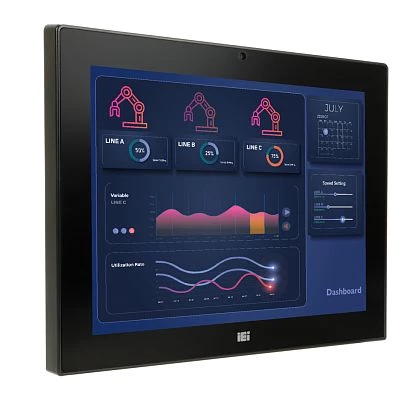

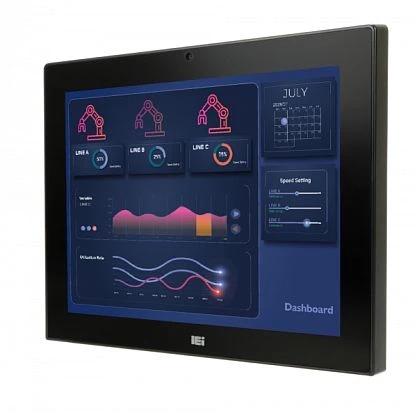

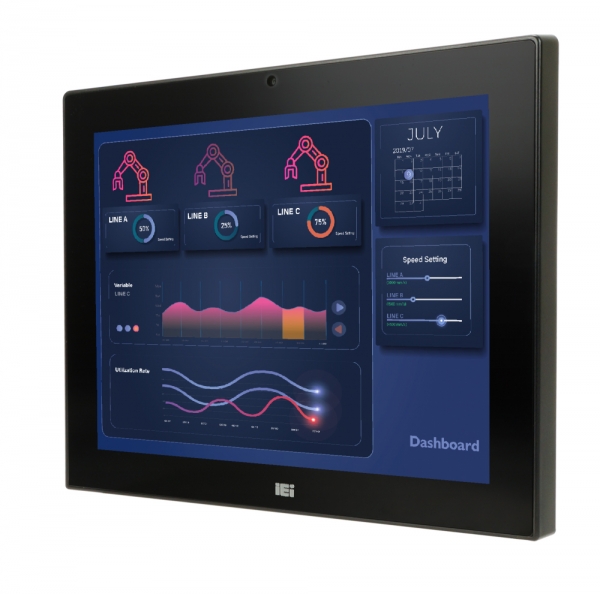

15.6" 300cd/m2 fanless panel PC with Intel Celeron J13455 2.0GHz, projected capacitive touch screen, 4GB DDR3L RAM, 2xGbit LAN, 2xCOM, 4xUSB, 1x2.5' SATA Drive Bay, mSATA, Wi-Fi, Audio, power supply 9-30V DC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
304 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE
Automotive
FCC Class A
Dimensions
Net Weight
2 kg
Gross Weight
4 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
304 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE
Automotive
FCC Class A
Dimensions
Net Weight
2 kg
Gross Weight
4 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
304 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE
Automotive
FCC Class A
Dimensions
Net Weight
2 kg
Gross Weight
4 kg
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J3455
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
304 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE
Automotive
FCC Class A
Dimensions
Net Weight
2 kg
Gross Weight
4 kg
